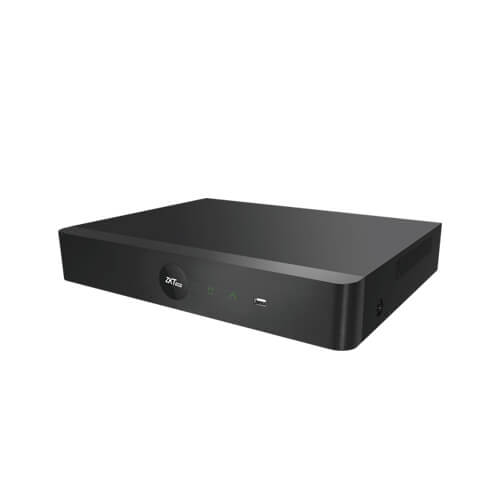

Specifications ZKTeco Z8516NFR
| Features | Specifications |
|---|---|
Video & Recording |
|
| Product Type | 16-Channel Non-PoE NVR |
| Maximum IP Camera Input | 16 Channels |
| Maximum Camera Resolution | 8MP |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 8MP / 5MP / 3MP / 1080P / 960P / 720P |
| Incoming Bandwidth | 80 Mbps |
| Bit Rate | 16 Kbps–8 Mbps |
| Recording Mode | Manual / External Alarm / Motion / Scheduled / IVA Alarm |
| Two-Way Talk | Not Supported |
| Audio Compression | G.711a |
Intelligent Video Analytics |
|
| Local IVA Functions | Target Counting / Object Detection / Intrusion / Tripwire |
| Regular Detection | Motion Detection / Video Tampering / Video Loss |
| AI Search | IVA Search / Time / Motion Detection |
Playback & Backup |
|
| Playback Channels | Up to 16 Channels |
| Search Mode | IVA Search / Time / Motion Detection |
| Playback Functions | Play / Stop / Forward / Reverse / 30 Seconds Forward / 30 Seconds Backward / Fast Play / Slow Play / Single Frame / Snapshot / Full Screen |
| Backup Mode | USB Device / Network |
Storage |
|
| SATA Ports | 2 × SATA |
| HDD Capacity | Up to 8 TB per HDD |
| RAID | Not Supported |
Network |
|
| Network Interface | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | TCP/IP / HTTP / DDNS / SMTP (SSL) / DHCP / PPPoE / UPnP / NTP / P2P |
| Mobile Application | AntarView Pro |
| Interoperability | ONVIF Profile S / SDK |
| Maximum Online Users | 5 |
Interfaces |
|
| HDMI Output | 1 × HDMI, up to 4K |
| VGA Output | 1 × VGA |
| USB | 2 × USB 2.0 |
| Alarm Input | Not Supported |
| Alarm Output | Not Supported |
| PoE Ports | Not Supported |
General |
|
| Processor | Multi-Core Embedded Processor |
| Operating System | Embedded Linux |
| Power Supply | DC 12V, 3A |
| Power Consumption | ≤20W, without HDD |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions | 325 × 246 × 50 mm |
| Net Weight | Approx. 3 kg |
| Gross Weight | Approx. 3.5 kg |
Note: The ZKTeco Z8516NFR is a 16-channel non-PoE NVR supporting up to 8MP IP cameras, 80 Mbps incoming bandwidth, 2 SATA HDDs up to 8 TB each, 4K HDMI output, IVA functions and ONVIF Profile S compatibility.
