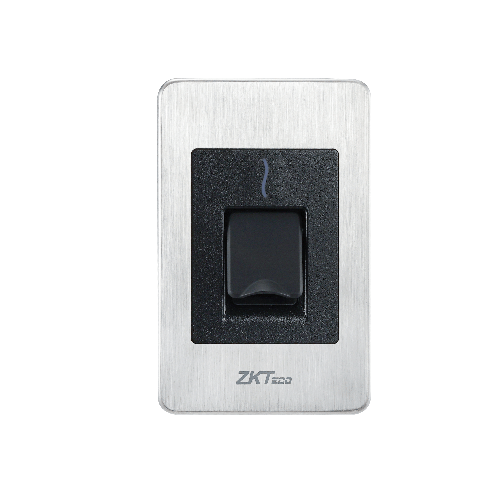

Specifications ZKTeco FR1500
| Features | Specifications |
|---|---|
Biometric Reader |
|
| Product Type | Fingerprint and RFID Biometric Reader |
| Fingerprint Sensor | Z-ID, 500 DPI |
| Effective Fingerprint Area | 15.24 × 20.32 mm |
| Authentication Method | Fingerprint / Card |
| Verification Speed | < 0.3 s @ Fingerprint |
| Fingerprint Algorithm | ZKFingerprint V10.0 / V13.0 |
RFID |
|
| Standard Card | 125 kHz ID Card |
| Optional Card | 13.56 MHz IC Card / Encrypted DESFire Card |
| Optional HID | HID Prox @ 125 kHz / HID iCLASS @ 13.56 MHz |
| Card Reading Distance | < 5 cm |
Communication |
|
| Interface | RS-485 |
| Protocol | ZKTeco RS-485 / OSDP Ver. 2.1.7 |
| Encryption | AES128 |
| Visual Indicator | LED: Blue / Green / Red |
| Audio Indicator | Beeper |
Performance |
|
| False Acceptance Rate | ≤ 0.0001% |
| False Rejection Rate | ≤ 0.01% |
Electrical |
|
| Power Supply | 9–24 VDC |
General |
|
| Housing Material | SUS304 Stainless Steel and ABS Plastic |
| Protection Rating | IP65 |
| Operating Environment | Indoor / Outdoor / Semi-Enclosed Area |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Installation | Wall Mount, Compatible with Single Gang Box |
| Dimensions | 121 × 77.3 × 38 mm |
| Net Weight | Approx. 0.20 kg |
| Gross Weight | Approx. 0.26 kg |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
Note: The ZKTeco FR1500 is a fingerprint and RFID biometric reader designed for access control systems. It supports 125 kHz ID cards, optional 13.56 MHz IC and DESFire cards, RS-485 and OSDP communication, AES128 encryption and IP65 protection for indoor and outdoor installations.
