Specifications ZKTeco SBTL6200
| Features | Specifications |
|---|---|
General |
|
| Product Type | Dual-Lane Swing Barrier Turnstile |
| Application | Additional Lane for SBTL6000 |
| Design | Modular Design |
| Barrier Movement | Swing |
| Lane Width | 635mm, optional up to 850mm |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel + Acrylic |
| Barrier Material | Tempered Glass, optional Acrylic |
| LED Indicator | Supported |
Authentication & Reader |
|
| Reader Design | Modular reader design for fast switching between different readers |
| RFID | Supported with compatible RFID reader |
| Fingerprint | Supported with compatible fingerprint reader |
| QR Code | Supported with compatible QR code reader |
| Palm Verification | Supported with compatible palm verification reader |
| Facial Recognition | Supported with compatible visible light facial recognition device |
| Reader Installation | Pull-out and plug-in installation |
Safety & Access Control |
|
| Infrared Sensor | 6 pairs |
| Emergency Mode | Supported |
| Power Failure Protection | Barrier unlocks automatically during a power outage |
| Anti-Collision | Supported |
| Access Control | Supports multiple verification methods through compatible readers |
Performance |
|
| MCBF | 2 million cycles |
| Operation | Smooth and silent operation |
| Power Consumption | Low power consumption design |
Power & Environment |
|
| Power Requirements | AC 100–120V / 200–240V, 50/60Hz |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 20% to 95% RH, non-condensing |
| Operating Environment | Indoor / Outdoor if sheltered |
Dimensions & Weight |
|
| Dimensions | 1400 × 180 × 1000mm |
| Package Dimensions | 1580 × 340 × 1270mm |
| Package Weight | 85kg |
Warranty |
|
| Warranty | 1 year |

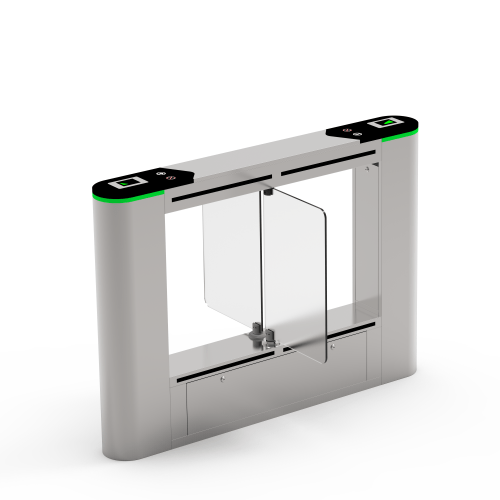

Note: ZKTeco SBTL6200 is a dual-lane swing barrier designed as an additional lane for the SBTL6000. It features a modular reader design and supports RFID, fingerprint, QR code, palm verification and visible light facial recognition, with SUS304 stainless steel construction, infrared sensors and emergency mode.
