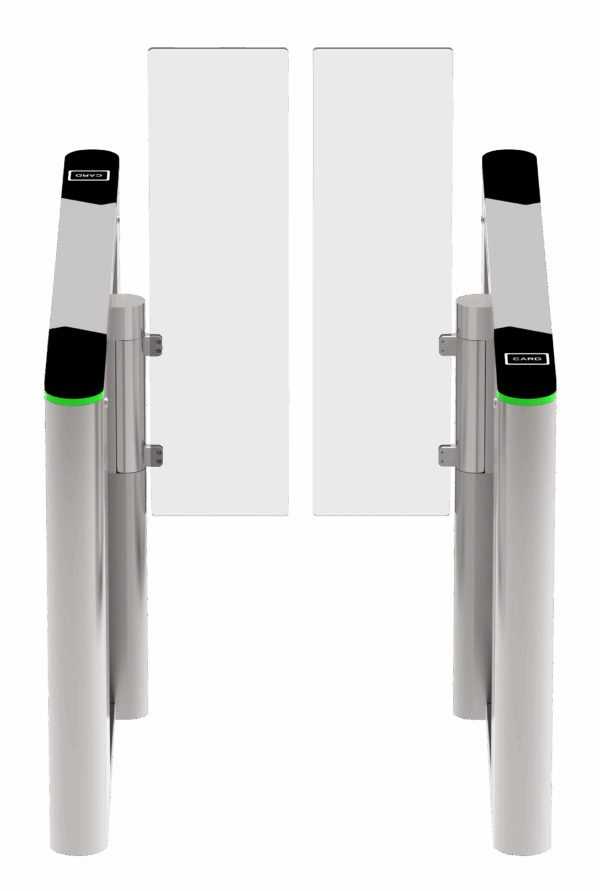

Specifications ZKTeco SBTL8000
| Features | Specifications |
|---|---|
General |
|
| Product Type | Single-Lane Swing Barrier Turnstile |
| Lane Type | Single Lane |
| Barrier Movement | Swing |
| Barrier Material | Transparent Acrylic |
| Barrier Size | 715 × 295mm (L × W) |
| Lane Width | 660mm standard, 1000mm optional |
| Chassis Material | SUS304 Stainless Steel |
| Chassis Color | Metallic Gray |
| Lid Material | Full Aluminum Top Cover with Tempered Glass |
Motor & Performance |
|
| Motor | Servo Motor |
| Movement Speed | Average 0.3–0.6 seconds per movement, adjustable opening/closing timing |
| Flow Rate | Up to 30 passengers per minute with facial authentication or QR Code; up to 35 passengers per minute with RFID |
| Clutch | Equipped |
| MCBF | 10 million cycles |
| MTTR | 60 minutes |
Authentication & Access Control |
|
| Authentication Methods | QR Code, RFID and Facial Authentication |
| QR Code | Dynamic and Static QR Code supported |
| RFID Reader | Supports Pro ID Series and KR Series readers |
| QR Code Reader | QR500 |
| Facial Authentication | Supported with optional post-mounted facial authentication device |
| Controller | Not equipped; C3 Series or InBio Series controller optional |
| Third-Party Controller | Supported subject to available turnstile chassis space |
Indicators & Sensors |
|
| Audio Indicator | Internal Buzzer |
| Visual Indicator | Top LED indicator: Blue = Door Closed/Standby, Green = Door Open, Red = Door Close/Alarm |
| IR Sensors | 12 pairs standard, 18 pairs optional |
Communication & Interfaces |
|
| Motherboard Function | System configuration and access mode configuration |
| Motherboard Communication | Fire Alarm Port (Relay) ×1, RS-485 Port ×1 |
| Fire Signal | Voltage-free contact input |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity, depending on equipped access controller |
Safety & Security |
|
| Safety Features | Power-off unlock and fire alarm active door release |
| Security Features | Anti-tailgating and anti-pinch |
| Emergency Mode | Swing barrier unlocks automatically |
| Accessibility | Suitable for adults, children and elderly with care, and persons with disabilities with care |
| Security Level | Middle |
Power & Environment |
|
| Power Supply | AC 100–220V, 50/60Hz |
| Power Rating | 40VA standby; 120VA operation |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 0% to 95% RH, non-condensing |
| Application Environment | Indoor / Outdoor |
| Ingress Protection | IPX4 standard; IP65 optional |
| Noise Level | Less than 60dB |
Dimensions & Weight |
|
| Dimensions | 1613 × 134 × 1017.5mm (Standard IPX4) |
| Dimensions with IP65 | 1613 × 134 × 1031.5mm |
| Product Weight | 220kg |
| Package Dimensions | 1770 × 370 × 1125mm (2 boxes) |
| Installation | Pre-assembled for easy installation |
| Site Preparation | Flat and level finished floor; optional base plate for unfinished floors |
| Packaging | Wooden Box |
Certifications |
|
| Certifications | CE, FCC |
Note: ZKTeco SBTL8000 is a single-lane swing barrier turnstile featuring a servo motor, modular authentication options, IR sensors, anti-tailgating and anti-pinch protection. It supports RFID, QR Code and facial authentication with optional access controllers for secure and efficient entrance control.
