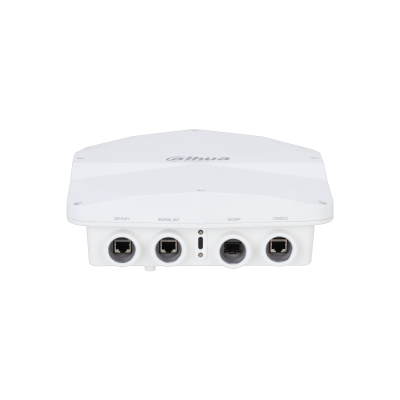

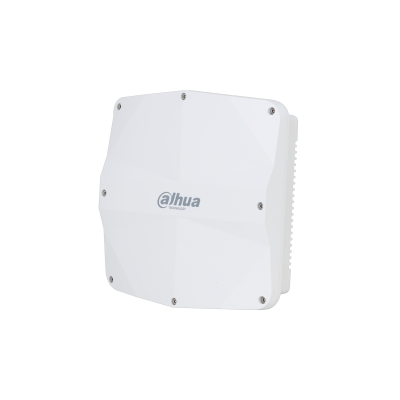

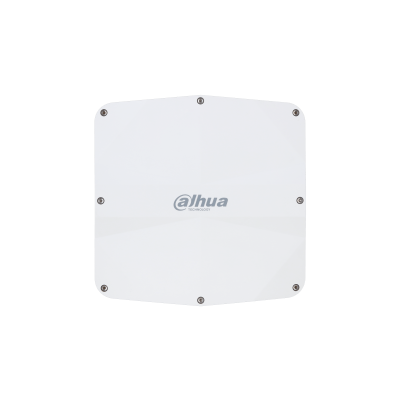

AWA6220-O

Hardware AWA6220-O

Weight (excluding mounting accessories)

1.8 kg (3.97 lb)

Dimensions (excluding mounting and accessories)

250 mm x 250 mm x 79.5 mm (9.84″ × 9.84″ × 3.13″) (L × W × H)

Ethernet Ports

2 × 100M/1000M Base-T RJ-45

1 × 100M/1000M Base-X SFP

1 × Console port (RJ-45)

Antenna

Internal directional antenna, antenna gain: 11 dBi@2.4G/11 dBi@5G/ Horizontal beamwidth (HBW): 65 degrees

Vertical beamwidth (VBW): 30 degrees

Support extended external antenna

Working Frequencies

802.11ax/ac/n/a: 5.725 GHz–5.850 GHz; 5.47 GHz–5.725 GHz; 5.15 GHz–5.35 GHz

802.11ax/b/g/n: 2.4 GHz–2.483 GHz

Modulation Mode

11b: DSS: CCK@5.5/11 Mbps, DQPSK@2 Mbps, DBPSK@1 Mbps

11a/g: OFDM: 64QAM@48/54 Mbps, 16QAM@24 Mbps, QPSK@12/18 Mbps, BPSK@6/9 Mbps

11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM

11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM

11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Maximum Transmit Power

2.4 GHz: 27 dBm

5 GHz: 24 dBm

Reset/Restoration To Factory Default

Yes

State LED

Alternating flashing mode, orange/green/blue for different working states, breathing mode

Enviorment

Outdoor

Working Temperature

––30 °C to 55 °C (–22 °F to 131 °F )

Storage Temperature

–40 °C to 70 °C (–40 °F to 158 °F )

Working Humidity

0%–100% (non-condensing)

Storage Humidity

0%–100% (non-condensing)

Protection Class

IP68

EMC

CE EMC, CE RED

MTBF

>500000H

Software specifications AWA6220-O

Compliance

Compliant with 802.11a/b/g/n/ac/ax

Working Frequencies And MIMO

5 GHz 2 × 2: 2 MU-MIMO 1.2 Gbps

2.4 GHz, 2 × 2: 2 MU-MIMO 0.575 Gbps or

5 GHz (1) 2 × 2: 2 MU-MIMO 1.2 Gbps

5 GHz (2) 2 × 2: 2 MU-MIMO 1.2 Gbps dual 5G mode

Bandwidth

20 MHz/40 MHz/80 MHz

WLAN Basics

Maximum number of clients per radio: 512

Virtual APs: 32

Open system/shared key authentication

Broadcast probe request acknowledge control

Mixed connection for WPA, WPA2, WPA3 and Pre-RSNA users

RTS/CTS

CTS-to-self

802.11k and 802.11v smart roaming

802.11r fast transition roaming

Advanced Traffic Management

Restrict low rate/sticky terminals access

Channel reuse

Receiver sensitivity adjustment

Automatic channel/power/bandwidth adjustment

Hide SSID

Hotspot 2.0

Security Policy

WEP-64/128/152bit, dynamicWEP, TKIP, AES, EAP, CCMP, WPA3, OWE

Multiple encryption key triggered dynamic unicast/multicast key update

Support 802.11i

802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK

Layer 2 user isolation

SSID-based user isolation

Packet filtering

MAC address filtering

Broadcast storm suppression

Wireless EAD

SSID and VLAN binding

WIDS/WIPS

Rogue device detection and countermeasure

Dynamic ARP Inspection

IP Source Guard (IPSG)

Management frame protection (802.11w)

AAA

RADIUS client

Multiple-domain authentication server

Backup authentication server

Layer 2 And Layer 3 Features

IP address configuration :Static IP (available only in fat AP mode)/DHCP assigned IP (Option 60)

IPV6: Native IPv6/IPv6 Portal/IPv6 SAVI

ACL: IPv4/IPv6

Local forwarding based on SSID and VLAN

Link Layer Discovery Protocol (LLDP)

SSID-based VLAN assignment

EoGRE Tunnel

Multicast:IGMP Snooping/MLD Snooping

QoS

802.11e :Wi-Fi Multimedia (WMM)

802.1p priority and marking on Ethernet ports

Priority mapping for wired and wireless connection

SSID/VLAN and QoS policy mapping

Layer 2 to Layer 4 packet filtering and traffic classification

CAR

User bandwidth management

Load balancing

Multicast enhancement:Multicast to Unicast (IPv4, IPv6)

Call Admission Control (CAC)

Airtime optimization

Airtime fairness

Layer 4-7 application identification

SVP Phone

Management and Maintenance

AWA6220-O AP Working Mode : Fit/Fat

Network management:Trap, HTTP(S), SSH, Telnet, FTP/TFTP, SNMP V1/V2/V3 only applicable in Fat mode

Management SSID

Syslog

Remote probe analysis
