| Features |
Description |
| Product Type |
Cat6 U/UTP Network Cable |
| Cable Category |
CAT6 |
| Construction |
U/UTP, 4 Pairs |
| Conductor |
Solid Bare Copper |
| Conductor Size |
23 AWG |
| Conductor Diameter |
0.57 ± 0.005 mm |
| Insulation Material |
HDPE |
| Insulation Diameter |
1.02 ± 0.05 mm |
| Insulation Thickness |
0.2 ± 0.02 mm |
| DC Resistance |
≤95 Ω/km |
| Cable Jacket |
Description |
| Jacket Material |
PVC, Complies with RoHS/REACH |
| Jacket Thickness |
0.6 ± 0.05 mm |
| External Diameter |
6.2 ± 0.3 mm |
| Jacket Color |
Blue (RAL5015) |
| Tensile Strength |
>13.5 MPa |
| Rip Cord |
Yes |
| Crossing Backbone |
Yes |
| Standards & Packaging |
Description |
| Test Standard |
ISO/IEC 11801 Ed.2, ANSI/TIA-568-C.2 |
| Packing Length |
305 ± 1 m |
| Surface Printing |
Black Printing, 3.0 ± 0.3 mm Letter Height |
| Printing Interval |
1 ± 0.005 m |
| Case Number |
Yes |
| Packaging |
Carton |
| Ambient Temperature |
-20°C to 60°C |

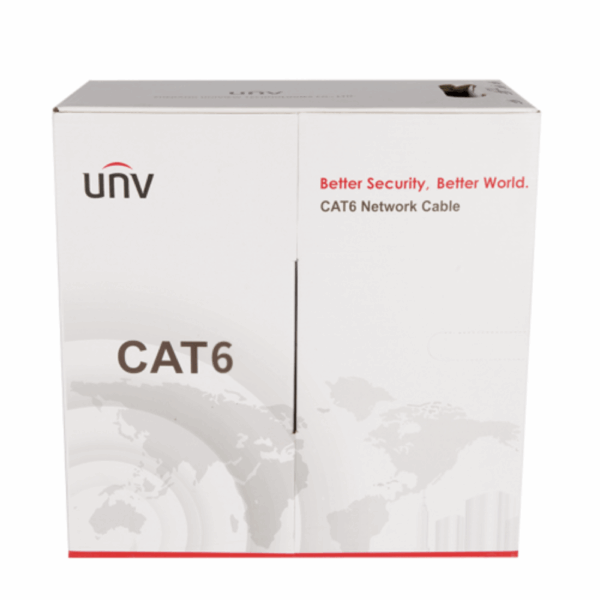

Note: The Uniview CAB-LC3100B-IN is a CAT6 U/UTP network cable featuring 23 AWG solid bare copper conductors, 305 ± 1 m length, PVC jacket, 0.57 mm conductor diameter, and compatibility with ISO/IEC 11801 Ed.2 and ANSI/TIA-568-C.2 standards. It is suitable for structured network cabling and PoE applications.
