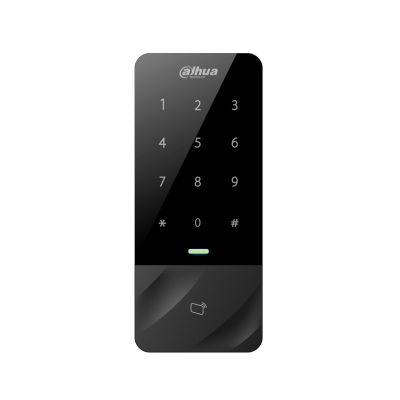

Dahua DHI-ASI1201E-D

Technical Specification

Mode

ASI1201E

ASI1201E-D

System

Main Processor

32 Bit

Input/Output Ports

Input

Door sensor x 1, Exit button x 1

Output

Relay x 1 (Door lock,)

Reader

Reader x 1

Card Read

Read Format

13.56MHz

125KHz

Read Range

1cm–2cm (max.)

Response Time

<0.1s

Capacity

Cardholders

30,000

Events

60,000

Function

User Management

General, VIP, Guest, Patrol, Block list, Duress

Alarm Function

Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Period Setting

Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods

Interface

To PC

RJ45(10/100M)

To Reader

Wiegand26/34, RS485

Genreal

Ingress Protection

IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

RTC

Yes

Beep Tone

Buzzer

Keyboard

Sensitive touch keypad with blue backlight

Power Supply

DC 9-15V/100mA

Operating Temperature

-30°C to +55°C

Working Humidity

10%RH–90%RH (no-condensation)

Dimension(W×D×H)

62.0mm×142.0mm×23.0mm

Weight

0.5kg

Working Environment

Outdoor

Certificates

CE

Yes

FCC

Yes
