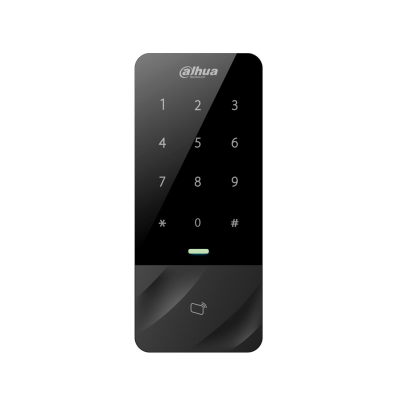

DAHUA DHI-ASI1201E

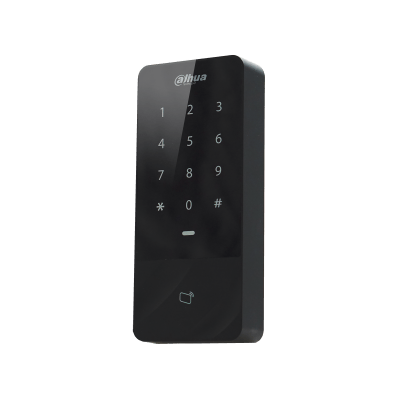

Dahua DHI-ASI1201E
  1. DAHUA DHI-ASI1201E
  2. Dahua DHI-ASI1201E

Dahua DHI-ASI1201E

DAHUA DHI-ASI1201E

Waterproof RFID Standalone Access Controller

  • IC card and password access control with combination verification
  • Supports up to 30,000 cardholders and 60,000 event records
  • 13.56MHz MIFARE card reader with 1–5cm reading range
  • TCP/IP network connection with Wiegand and RS-485 interfaces
  • Supports door timeout, intrusion, duress and tamper alarms
  • IP66 waterproof design with backlit touch keypad and 12VDC power
หมวดหมู่: , , ป้ายกำกับ:

Specifications DAHUA DHI-ASI1201E

Features Description
Product Type Water-proof RFID Access Standalone
Verification Method IC Card, Password and Combination
Card Type 13.56MHz IC / MIFARE Card
Cardholders Up to 30,000
Event Records Up to 60,000
Communication TCP/IP, Wiegand and RS-485
Built-in Reader 1 × IC Card Reader
Protection IP66
System
Main Processor 32-bit Processor
Memory 16MB
RTC Supported
Watchdog Supported
Keyboard Sensitive Touch Keypad with Blue Backlight
Beep Tone Buzzer
Card Reader
Reader 1 × Built-in Reader
Card Technology 13.56MHz IC / MIFARE
Reading Distance 1cm ~ 5cm
Response Time <0.1s
External Reader Interface Wiegand / RS-485
Capacity
Cardholders 30,000
Event Records 60,000
User Types General, VIP, Guest, Patrol, Blocklist and Other
Schedule Groups 128 Groups
Period Groups 128 Groups
Holiday Periods 128 Groups
Access Control & Alarm
Door Sensor Input 1 × Input
Exit Button Input 1 × Input
Door Lock Output 1 × Relay Output
Door Timeout Alarm Supported
Intrusion Alarm Supported
Duress Alarm Supported
Tamper Alarm Supported
Blocklist Alarm Supported
Anti-passback Supported
Multi-card Unlock Supported
Network & Interface
Network Interface 1 × RJ45 10/100M Ethernet
Network Protocol TCP/IP
External Reader Wiegand 26/34, RS-485
Auto Registration Supported
Communication with PC TCP/IP
Power & Physical
Power Supply 12VDC
Power Consumption Approx. 0.5A
Installation Surface Mount
Dimensions 142 × 62 × 23mm
Weight 0.7kg
Material Plastic
Keypad Touch Keypad with Blue Backlight
Environment & Protection
Operating Temperature -30°C ~ +60°C
Operating Humidity 5% ~ 95% RH, Non-condensing
Working Environment Outdoor
Protection Rating IP66

Note: The DHI-ASI1201E is an IC/MIFARE card access standalone with built-in card reader, touch keypad, TCP/IP communication and Wiegand/RS-485 interfaces for external readers.

Important: DHI-ASI1201E uses 13.56MHz IC/MIFARE cards. Do not confuse it with the DHI-ASI1201E-D version, which is designed for 125KHz ID/EM cards.

Datasheet
