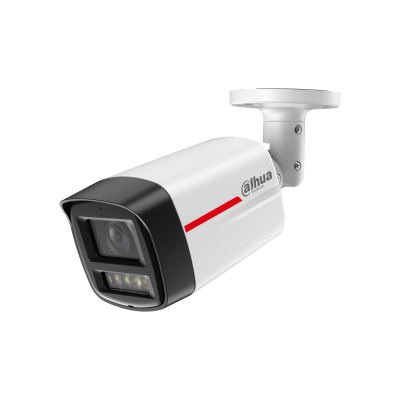

Specifications Dahua IPC-HFW2449TL-S-PRO
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 4MP WizColor Fixed-focal Bullet Network Camera |
| Image Sensor | 1/1.8″ CMOS |
| Max. Resolution | 2688 × 1520 |
| Scanning System | Progressive |
| Minimum Illumination | 0.0005 lux @ F1.0 |
| S/N Ratio | >56 dB |
| Electronic Shutter | Auto / Manual, 1/3 s–1/100,000 s |
Lens & Illumination |
|
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm / 3.6 mm / 6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H 112° / V 60° / D 134° 3.6 mm: H 94° / V 50° / D 113° 6 mm: H 58° / V 31° / D 67° |
| Illumination | Built-in warm light, up to 50 m |
| Illuminator | 4× Warm Light |
Video |
|
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Main Stream | 2688 × 1520 @ 1–20 fps / 2560 × 1440 @ 1–25/30 fps |
| Sub Stream | 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Image Functions | BLC, HLC, ROI, Digital Watermarking, Image Rotation, Mirror and Privacy Masking |
Intelligent Functions |
|
| IVS | Intrusion and Tripwire with Human and Vehicle Classification |
| SMD | SMD Plus |
| Smart Search | Supported with Smart NVR |
| Motion Detection | Supported |
Audio & Storage |
|
| Audio | Built-in Microphone |
| Audio Compression | G.711a / G.711Mu / PCM / G.726 |
| Storage | MicroSD Card up to 256 GB, FTP, SFTP and NAS |
Network |
|
| Network Port | 1× RJ-45 10/100 Base-T |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE and P2P |
| Interoperability | ONVIF Profile S / Profile G / Profile T / CGI |
| Management Software | SmartPSS Lite / DSS / DMSS |
| Mobile Client | iOS / Android |
Power & Protection |
|
| Power Supply | 12 VDC / PoE |
| Power Consumption | Basic: 2.0 W (12 VDC) / 3.0 W (PoE) Maximum: 5.6 W (12 VDC) / 7.2 W (PoE) |
| Protection | IP67 |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
Physical |
|
| Material | Metal |
| Dimensions | 197.9 × 80.2 × 76.2 mm |
| Net Weight | 0.57 kg |
| Mounting | Ceiling / Wall / Pole Mounting |
Note: Specifications may vary depending on the hardware revision (S0/S1) and regional version. Please verify the exact hardware version before installation.
