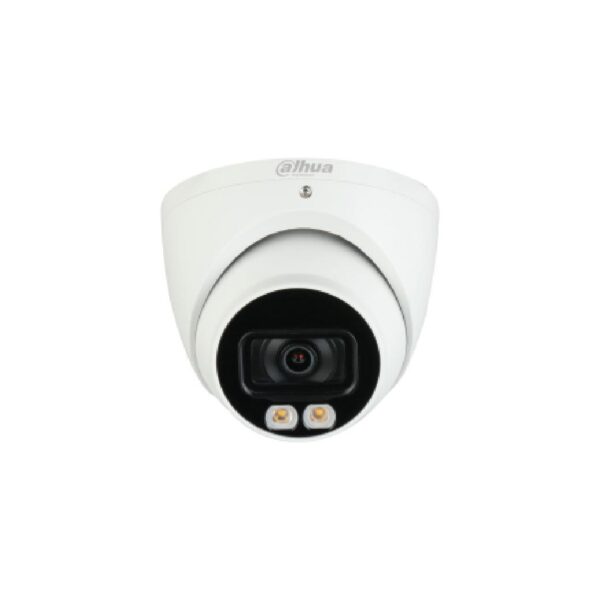

Specifications DAHUA DH-HAC-HDW1200TP-IL-A
| Features | Description |
|---|---|
| Product Type | 2MP HDCVI Smart Dual Light Fixed-focal Eyeball Camera |
| Image Sensor | 2MP CMOS |
| Max. Resolution | 1920 × 1080 |
| Lens | Fixed 3.6mm lens; 2.8mm optional |
| Illumination | Smart Dual Light with IR and warm light up to 40m |
| Audio | Built-in microphone with coaxial audio transmission |
| Video Output | HDCVI / TVI / AHD / CVBS switchable |
| Protection | IP67 |
| CAMERA | |
|---|---|
| Image Sensor | 2MP CMOS |
| Max. Resolution | 1920 × 1080 |
| Scanning System | Progressive |
| Electronic Shutter | PAL: 1/25s–1/100000s |
| Min. Illumination | 0.01 lux @ F2.0 (Color); 0.001 lux @ F2.0 (B/W); 0 lux with illuminator on |
| S/N Ratio | >65dB |
| LENS & DORI | |
|---|---|
| Lens Type | Fixed-focal, M12 |
| Focal Length | 2.8mm / 3.6mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8mm: H 102° / V 60° / D 129°; 3.6mm: H 83° / V 48° / D 105° |
| Close Focus Distance | 2.8mm: 0.5m; 3.6mm: 0.7m |
| DORI Distance | 2.8mm: Detect 41.1m / Observe 16.5m / Recognize 8.3m / Identify 4.1m |
| DORI Distance | 3.6mm: Detect 50.9m / Observe 20.3m / Recognize 10.2m / Identify 5.1m |
| SMART DUAL LIGHT | |
|---|---|
| Illumination | Smart Dual Light |
| IR Distance | Up to 40m |
| Warm Light Distance | Up to 40m |
| Illuminators | 2 IR lights + 2 warm lights |
| Illumination Mode | Smart IR & WL / WL Mode / IR Mode |
| Control | Automatic |
| VIDEO | |
|---|---|
| Video Standard | HDCVI / TVI / AHD / CVBS |
| Frame Rate | PAL: 1080p @ 25fps |
| CVBS Resolution | PAL: 960H |
| Day/Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Area White Balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Mirror | Yes |
| Privacy Masking | Up to 8 areas |
| AUDIO | |
|---|---|
| Audio Input | 1 channel |
| Microphone | Built-in microphone |
| Audio Transmission | Coaxial audio |
| INTERFACE | |
|---|---|
| Video Output | 1 × BNC, CVI / TVI / AHD / CVBS |
| Audio Input | 1 channel |
| POWER & PROTECTION | |
|---|---|
| Power Supply | 12VDC ±30% |
| Power Consumption | Max. 4.1W |
| Protection | IP67 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Casing Material | Metal |
| Dimensions | Ø106.0 × 99.2mm |
| Net Weight | 0.45kg |
| Operating Temperature | -40°C to +60°C |
| Operating Humidity | <95% RH, non-condensing |
| Installation | Wall mount / Ceiling mount / Vertical pole mount |
Note: The DH-HAC-HDW1200TP-IL-A is the PAL version of the 1200-S6-IL series. Smart Dual Light automatically switches between warm light and IR according to the monitoring environment.
Important: To use Smart Dual Light functions, the XVR firmware must be V4.001.0000004.1.R.220323 or later.
