| Features |
Description |
| Product Type |
2MP IR Bullet Network Camera |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Lens |
3.6 mm Fixed-Focal Lens, 2.8 mm Optional |
| IR Distance |
Up to 30 m |
| Audio |
Built-in Microphone |
| Storage |
MicroSD up to 256 GB |
| Protection |
IP67 |
| Camera |
| Image Sensor |
1/2.7″ 2MP Progressive CMOS |
| Effective Pixels |
1920 × 1080 |
| Scanning System |
Progressive Scan |
| Minimum Illumination |
0.005 Lux @ F1.6 |
| Shutter Speed |
Auto / Manual, 1/3 s–1/100,000 s |
| Day/Night |
Auto ICR / Color / B/W |
| IR Distance |
30 m |
| IR Control |
Auto / Manual |
| IR LEDs |
1 |
| Lens |
| Lens Type |
Fixed-Focal |
| Lens Mount |
M12 |
| Focal Length |
3.6 mm; 2.8 mm Optional |
| Max. Aperture |
F1.6 |
| Field of View |
3.6 mm: H 91° / V 48° / D 109°
2.8 mm: H 110° / V 59° / D 132° |
| Close Focus Distance |
3.6 mm: 1.1 m; 2.8 mm: 0.6 m |
| DORI Distance |
| 3.6 mm Lens |
Detect: 53.3 m / Observe: 21.3 m / Recognize: 10.7 m / Identify: 5.3 m |
| 2.8 mm Lens |
Detect: 37.3 m / Observe: 14.9 m / Recognize: 7.5 m / Identify: 3.7 m |
| Video |
| Video Compression |
H.265 / H.264 / H.264B / MJPEG |
| Smart Codec |
Smart H.265+ / Smart H.264+ |
| Main Stream |
1920 × 1080 @ 1–25/30 fps |
| Sub Stream |
704 × 576 @ 1–25 fps; 704 × 480 @ 1–30 fps |
| Stream Capability |
2 Streams |
| Bit Rate Control |
CBR / VBR |
| Video Bit Rate |
H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps |
| Image & Smart Detection |
| WDR |
DWDR |
| BLC / HLC |
Supported |
| Noise Reduction |
3D DNR |
| Motion Detection |
4 Areas |
| ROI |
4 Areas |
| Smart IR |
Supported |
| Intrusion |
Supported |
| Tripwire |
Supported |
| Privacy Masking |
4 Areas |
| Image Rotation |
0° / 90° / 180° / 270° |
| Mirror |
Supported |
| Audio & Network |
| Audio |
Built-in Microphone |
| Audio Compression |
G.711A / G.711Mu / G.726 |
| Network Port |
RJ-45 10/100 Base-T |
| Network Protocols |
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/IPv6, QoS, UPnP, NTP, RTMP, Multicast, HTTPS, SFTP, 802.1x, ICMP, IGMP |
| Interoperability |
ONVIF Profile S / Profile G, CGI, P2P, Milestone, Genetec |
| Remote Users |
Up to 20 Users/Hosts |
| Edge Storage |
MicroSD up to 256 GB / FTP / NAS / Dahua Cloud |
| Management |
SmartPSS / DSS / DMSS |
| Power & General |
| Power Supply |
12 VDC / PoE 802.3af |
| Power Consumption |
Less than 4.6 W |
| Operating Temperature |
-40°C to +60°C |
| Operating Humidity |
≤ 95% RH |
| Protection |
IP67 |
| Casing |
Metal |
| Dimensions |
166.2 × Ø70 mm |
| Net Weight |
0.48 kg |

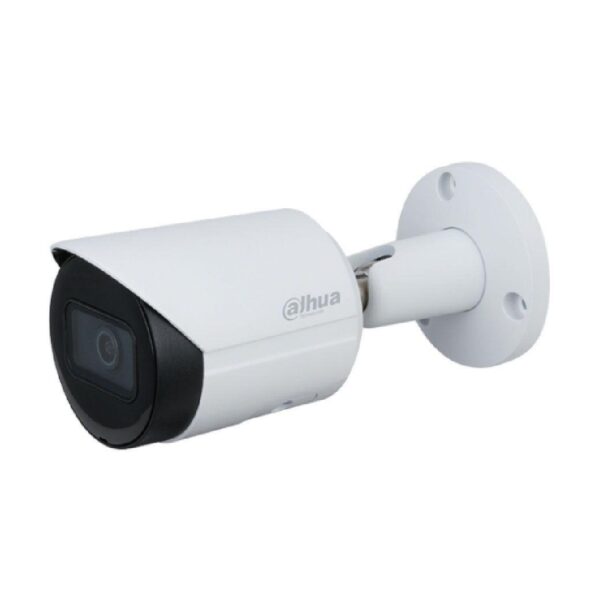

Note: DH-IPC-HFW2230SP-SA-S2 is a 2MP IR Bullet Network Camera with built-in microphone, 30 m IR illumination, Smart H.265+/H.264+, intrusion and tripwire detection, MicroSD storage and PoE support.
Important: DH-IPC-HFW2230SP-SA-S2 is the PAL version. The corresponding NTSC model is DH-IPC-HFW2230SN-SA-S2. Actual performance depends on the selected lens, network conditions, cabling, storage and installation environment.
