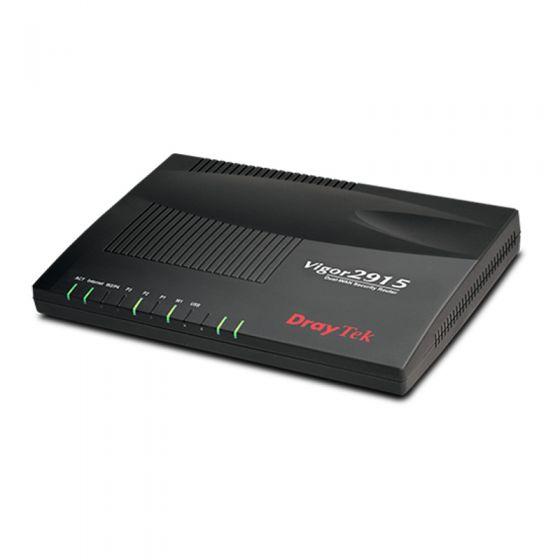

DrayTek Vigor2915

Product Specification

Overview

DrayTek Vigor2915 Internet Gateway VPN Router รองรับ VPN 16 Tunnels, 8 SSL VPN, 30000 NAT Sessions, 500Mbps รองรับ 30 Device

Firewall, QOS, VLAN, รองรับ 4G LTE USB Modem

Interface

Fixed WAN Port

1x 10/100/1000Base-TX, RJ-45

WAN/LAN Switchable Port

1x 10/100/1000Base-TX, RJ-45 (WAN 2 or LAN Port 4)

Fixed LAN Port

3x 10/100/1000Base-TX, RJ-45

USB Port

1x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer

Button

1x Factory Reset Button
1x Wireless On/OFF/WPS Button (ac model)

2.4G WLAN

802.11n 2×2 MIMO 400 Mbps (ac model)

5G WLAN

802.11ac 2×2 MIMO 867 Mbps (ac model)

Performance

NAT Throughput

500 Mbps

NAT Throughput w/ Hardware Acceleration

930 Mbps

IPsec VPN Performance

250 Mbps (AES 256 bits)

SSL VPN Performance

150 Mbps

Max. Number of NAT Sessions

30,000

Max. Concurrent VPN Tunnels

16

Max. Concurrent OpenVPN + SSL VPN

8

Internet Connection

IPv4

PPPoE, DHCP, Static IP, PPTP/L2TP

IPv6

PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel

802.1p/q Multi-VLAN Tagging

Multi-VLAN for Triple Play

Wireless WAN

(ac model)

WAN Load Balancing

Support

WAN Failover

Support

WAN Active on Demand

Link Failure, Traffic Threshold

Connection Detection

ARP, Ping

WAN Data Budget

Support

Dynamic DNS

Support

DrayDDNS

Support

LAN Management

VLAN

802.1q Tag-based, Port-based

Max. Number of VLAN

8

Number of LAN Subnet

4

DHCP Server

Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC

Port Mirroring

Support

Local DNS Server

Support

Conditional DNS Forwarding

Support

Hotspot Web Portal

Support

Hotspot Authentication

Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server

Networking

Routing

IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIPv1/v2

Policy-based Routing

Protocol, IP Address, Port, Domain

DNS Security (DNSSEC)

Support

Multicast

IGMP Proxy v2/v3, IGMP Snooping, Bonjour

SMB File Sharing

(Requires external storage)

VPN

LAN-to-LAN

Support

Teleworker-to-LAN

Support

Protocols

PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN

User Authentication

Local, RADIUS, LDAP, mOTP

IKE Authentication

Pre-Shared Key, X.509

IPsec Authentication

SHA-1, SHA-256, MD5

Encryption

MPPE, AES, DES, 3DES

VPN Trunk (Redundancy)

Load Balancing, Failover

Single-Armed VPN

Support

NAT-Traversal (NAT-T)

Support

Firewall & Content Filtering

NAT

Port Redirection, Port Triggering, DMZ Host, UPnP

ALG (Application Layer Gateway)

SIP, RTSP, FTP, H.323

VPN Pass-Through

PPTP, L2TP, IPsec

IP-based Firewall Policy

Support

Content Filtering

Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)

DoS Attack Defense

Support

Spoofing Defense

Support

Bandwidth Management

IP-based Bandwidth Limit

Support

IP-based Session Limit

Support

QoS (Quality of Service)

TOS, DSCP, 802.1p, IP Address, Port, Application

VoIP Prioritization

Support

APP QoS

Support

Wireless LAN (ac model)

Number of SSID

4 per band

Security Mode

WEP, WPA, WPA2, Mixed(WPA+WPA2)

Authentication

Pre-Shared Key, 802.1X

WPS

PIN, PBC

WDS

Bridge, Repeater (5G only)

Access Control

Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling

AirTime Fairness

–

Band Steering

–

WMM

–

Management

Local Service

HTTP, HTTPS, Telnet, SSH, TR-069

Config File Export & Import

Support

Config File Compatibility

Vigor2912

Firmware Upgrade

TFTP, HTTP, TR-069

2-Level Administration Privilege

Support

Access Control

Access List, Brute Force Protection

Notification Alert

SMS, E-mail

SNMP

v2, v2c, v3

Syslog

Support

Managed by VigorACS

Support

Physical

Power Supply

DC 12V @ 2A

Max. Power Consumption

11.3 watts (ac model)

Dimension

220mm x 160mm x 36mm

Weight

400g (ac model)

Operating Temperature

0 to 45°C

Storage Temperature

-25 to 70°C

Operating Humidity (non-condensing)

10 to 90%
