| Features |
Description |
| Product Type |
4 MP Fixed Bullet Network Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.01 Lux @ F2.0, AGC ON; B/W: 0 Lux with IR |
| WDR |
120 dB WDR |
| Lens |
Fixed 2.8 mm / 4 mm, M12, F2.0 |
| IR Range |
Up to 30 m, Smart Supplement Light |
| Audio |
Built-in Microphone |
| Storage |
MicroSD/SDHC/SDXC up to 256 GB |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Power Supply |
12 VDC or PoE 802.3af Class 3 |
| Protection |
IP67 |
| Camera |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° |
| Image Enhancement |
BLC, 3D DNR |
| Wide Dynamic Range |
120 dB WDR |
| Lens |
| Focal Length |
2.8 mm / 4 mm |
| Field of View |
2.8 mm: H 98.0°, V 53.1°, D 114.7°
4 mm: H 78.7°, V 43.1°, D 92.3° |
| Lens Mount |
M12 |
| Aperture |
F2.0 |
| Illuminator |
| Light Type |
IR |
| IR Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream |
50 Hz: 20 fps at 2560 × 1440; 25 fps at 1920 × 1080 / 1280 × 720
60 Hz: 20 fps at 2560 × 1440; 30 fps at 1920 × 1080 / 1280 × 720 |
| Sub Stream |
50 Hz: 25 fps at 640 × 480 / 640 × 360
60 Hz: 30 fps at 640 × 480 / 640 × 360 |
| Video Compression |
H.265 / H.264 / H.264+ / H.265+; Sub-stream: H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline Profile / Main Profile / High Profile |
| H.265 Profile |
Main Profile |
| ROI |
1 Fixed Region for Main Stream |
| Audio |
| Microphone |
Built-in Microphone |
| Audio Compression |
G.711u / G.711a / G.722.1 / G.726 / MP2L2 / PCM / AAC |
| Audio Bit Rate |
64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC) |
| Audio Sampling Rate |
8 kHz / 16 kHz |
| Noise Filtering |
Supported |
| Network |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| API |
ONVIF, ISAPI |
| Simultaneous Live View |
Up to 6 Channels |
| Users |
Up to 32 Users, 3 Levels |
| Client |
iVMS-4200, Hik-Connect |
| Storage & Event |
| Storage |
MicroSD/SDHC/SDXC up to 256 GB |
| Basic Event |
Motion Detection, Video Tampering, Exception |
| Event Linkage |
FTP, Memory Card Upload, Surveillance Center, Email, Recording, Capture |
| Reset Key |
Supported |
| General |
| Power Supply |
12 VDC ±25%, 0.4 A, Max. 5 W
PoE 802.3af Class 3, Max. 6.5 W |
| Operating Conditions |
-30°C to 60°C, Humidity ≤95% RH |
| Dimensions |
177.6 × 66.2 × 67.8 mm |
| Weight |
Approx. 270 g |
| Protection |
IP67 |

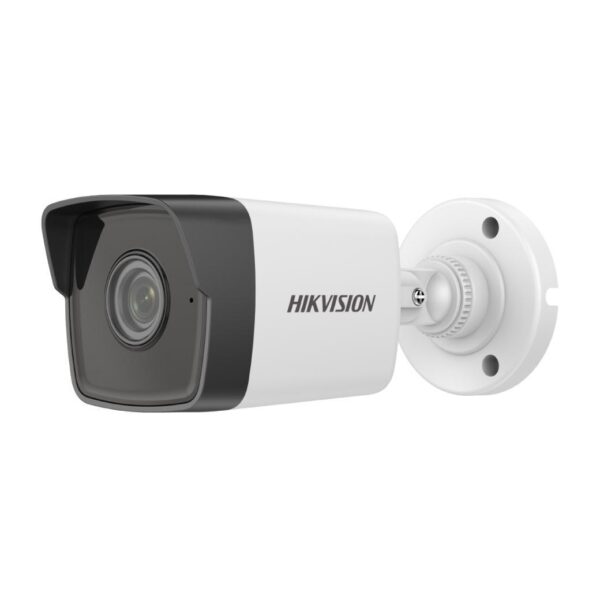

Note: The DS-2CD1043G0-IUF is a 4 MP fixed bullet camera with 120 dB WDR, Smart IR up to 30 m, built-in microphone, MicroSD storage up to 256 GB, and PoE support.
Important: The camera is available with 2.8 mm or 4 mm fixed lens options. Specifications may vary depending on product revision and firmware version.
