| Features |
Description |
| Product Type |
4 MP ColorVu Lite Fixed Bullet Network Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Min. Illumination |
Color: 0.001 Lux @ F1.0, AGC ON; 0 Lux with White Light |
| WDR |
120 dB Digital WDR |
| Lens |
Fixed 2.8 mm / 4 mm, M12, F1.0 |
| Supplement Light |
White Light, up to 30 m |
| Audio |
Not Supported |
| Storage |
Not Supported |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Power Supply |
12 VDC or PoE 802.3af |
| Protection |
IP67 |
| Camera |
| Shutter Time |
1/3 s to 1/100,000 s |
| Slow Shutter |
Supported |
| Day & Night |
Day / Night / Auto / Schedule |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Image Enhancement |
BLC, HLC, 3D DNR, AWB, ROI, Mirror |
| Lens |
| Focal Length |
2.8 mm / 4 mm |
| Field of View |
2.8 mm: H 96.5°, V 50.8°, D 113.9°
4 mm: H 75.8°, V 40.8°, D 89.1° |
| Lens Mount |
M12 |
| Aperture |
F1.0 |
| Depth of Field |
2.8 mm: 1.5 m to ∞
4 mm: 2.0 m to ∞ |
| Illuminator |
| Light Type |
White Light |
| White Light Range |
Up to 30 m |
| Smart Supplement Light |
Supported |
| Video |
| Main Stream |
50 Hz: 20 fps at 2560 × 1440; 25 fps at 2304 × 1296 / 1920 × 1080 / 1280 × 720
60 Hz: 20 fps at 2560 × 1440; 30 fps at 2304 × 1296 / 1920 × 1080 / 1280 × 720 |
| Sub Stream |
50 Hz: 25 fps at 640 × 480 / 640 × 360 / 320 × 240
60 Hz: 30 fps at 640 × 480 / 640 × 360 / 320 × 240 |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264; Sub-stream: H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline Profile / Main Profile / High Profile |
| H.265 Profile |
Main Profile |
| ROI |
1 Fixed Region for Main Stream |
| Network |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API |
ONVIF (Profile S, Profile G), ISAPI, SDK |
| Simultaneous Live View |
Up to 6 Channels |
| Users |
Up to 32 Users, 3 Levels |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Event |
| Basic Event |
Motion Detection, Exception |
| Event Linkage |
FTP/NAS Upload, Surveillance Center, Email, Recording, Capture |
| General Functions |
Anti-Flicker, Heartbeat, Mirror, Privacy Mask, Flash Log, Password Reset via Email, Pixel Counter |
| General |
| Power Supply |
12 VDC ±25%, 0.30 A, Max. 3.6 W
PoE 802.3af, Max. 4.5 W |
| Operating Conditions |
-30°C to 60°C, Humidity ≤95% RH |
| Material |
Metal |
| Dimensions |
68.4 × 65.2 × 161.1 mm |
| Weight |
Approx. 420 g |
| Protection |
IP67 |

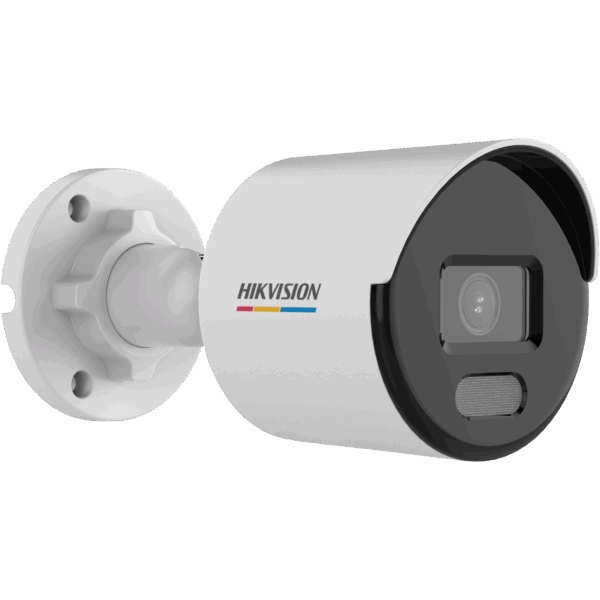

Note: The DS-2CD1047G0-L is a 4 MP ColorVu Lite fixed bullet camera designed for 24/7 color imaging. It uses an F1.0 lens and white supplemental light up to 30 m.
Important: The DS-2CD1047G0-L does not include a built-in microphone or internal storage. Available lens options are 2.8 mm and 4 mm.
