| Features |
Description |
| Product Type |
4 MP ColorVu Fixed Bullet Network Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Lens |
Fixed 2.8 mm / 4 mm |
| ColorVu |
24/7 Color Imaging |
| White Light Range |
Up to 30 m |
| WDR |
120 dB |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Max. Resolution |
2560 × 1440 |
| Shutter Time |
1/3 s to 1/100,000 s |
| Min. Illumination |
Color: 0.001 Lux @ (F1.0, AGC ON); 0 Lux with light |
| Day & Night |
24/7 Color Imaging |
| Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Aperture |
F1.0 |
| Lens Mount |
M12 |
| 2.8 mm FOV |
Horizontal: 96°, Vertical: 52°, Diagonal: 113° |
| 4 mm FOV |
Horizontal: 75°, Vertical: 40°, Diagonal: 89° |
| Depth of Field |
2.8 mm: 2 m to ∞; 4 mm: 2.7 m to ∞ |
| DORI |
| 2.8 mm |
Detect: 64 m; Observe: 25 m; Recognize: 12 m; Identify: 6 m |
| 4 mm |
Detect: 82 m; Observe: 32 m; Recognize: 16 m; Identify: 8 m |
| VIDEO |
| Main Stream |
20 fps at 2560 × 1440; up to 25 fps at 1920 × 1080 / 1280 × 720 (50 Hz) |
| Sub-Stream |
Up to 25 fps at 1280 × 720 / 640 × 480 / 640 × 360 (50 Hz) |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub-Stream Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| ROI |
1 fixed region for main stream |
| IMAGE |
| WDR |
120 dB |
| Noise Reduction |
3D DNR |
| BLC |
Supported |
| HLC |
Supported |
| Image Settings |
Brightness, Contrast, Saturation, Sharpness, Gain and White Balance |
| Privacy Mask |
4 programmable polygon regions |
| SMART FEATURES |
| Human Detection |
Supported |
| Vehicle Detection |
Supported |
| Motion Detection |
Supported |
| Video Tampering |
Supported |
| Exception Detection |
Supported |
| ILLUMINATOR |
| Supplement Light Type |
White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Supported |
| STORAGE & AUDIO |
| Memory Card |
microSD / microSDHC / microSDXC, up to 256 GB |
| Built-in Microphone |
Supported on -UF version |
| Audio Compression |
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| Audio Sampling Rate |
8 kHz / 16 kHz |
| Noise Filtering |
Supported |
| NETWORK |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Protocols |
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, IPv6 and more |
| ONVIF |
Supported |
| Web Browser |
Chrome 57+, Firefox 52+ |
| Security |
Password Protection, HTTPS, IP Address Filtering, 802.1X and User Authentication |
| POWER & INTERFACE |
| Power Supply |
12 VDC ±25%, 0.4 A |
| PoE |
IEEE 802.3af, Class 3 |
| Power Consumption |
12 VDC: Max. 5 W; PoE: Max. 6.5 W |
| Ethernet |
1 × RJ45 10/100M |
| Reset |
Supported |
| PHYSICAL & ENVIRONMENT |
| Housing |
Aluminum Alloy Body |
| Camera Dimensions |
Ø76.6 × 164.4 mm |
| Package Dimensions |
234 × 120 × 117 mm |
| Weight |
Approx. 430 g (UF version) |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
95% or less, non-condensing |
| Protection |
IP67 |

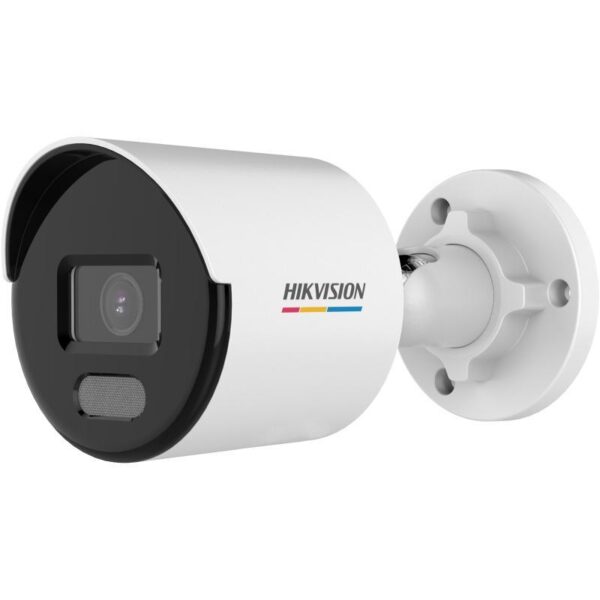

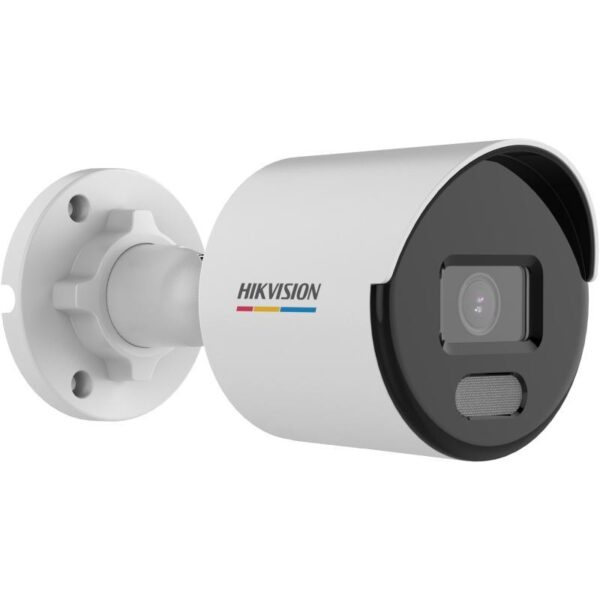

Note: DS-2CD1047G2-L(UF) is a 4 MP Hikvision ColorVu fixed bullet network camera designed for 24/7 full-color surveillance with white-light illumination and smart human and vehicle detection.
Important: Lens options are 2.8 mm and 4 mm. The -UF version includes a built-in microphone, while storage up to 256 GB requires a compatible microSD card.
