DS-2CD1143G2-LIU

DS-2CD1143G2-LIU
DS-2CD1143G2-LIU

DS-2CD1143G2-LIU

DS-2CD1143G2-LIU

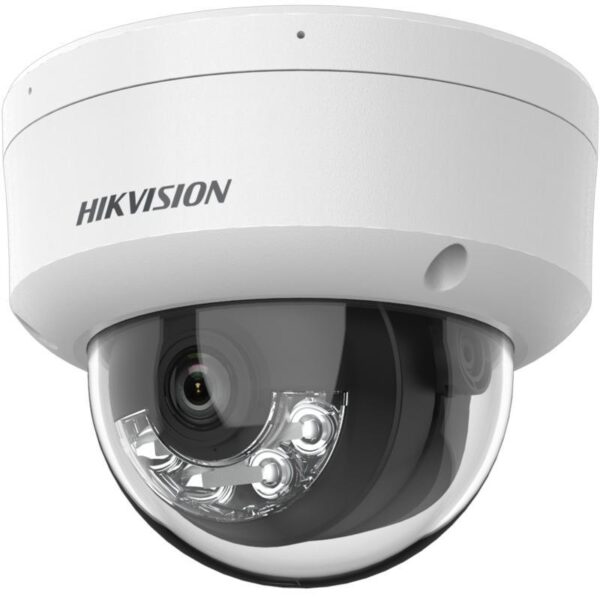

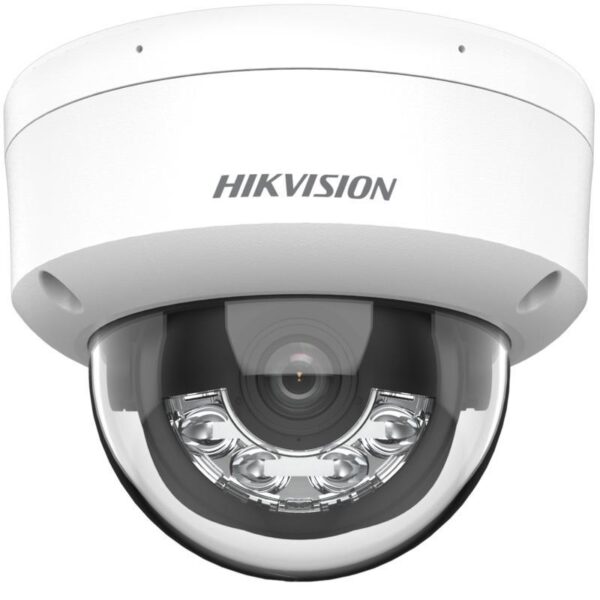

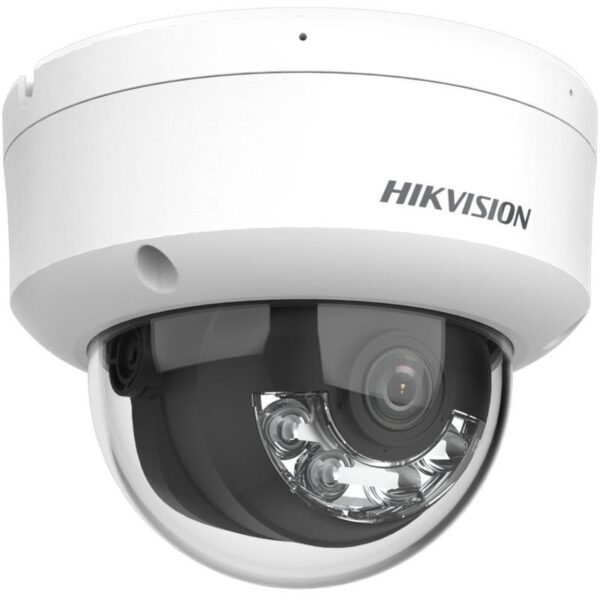

4 MP Smart Hybrid Light Fixed Dome Network Camera

คุณสมบัติ

  • High quality imaging with 4 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Built-in microphone for real-time audio security
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot) (Optional)
  • Water and dust resistant (IP67) and vandal resistant (IK08)
หมวดหมู่:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

DS-2CD1143G2-LIU

DS-2CD1143G2-LIU 4 MP Smart Hybrid Light Fixed Dome Network Camera

Camera

Image Sensor 1/3″ Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter

Lens

Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV

2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
Lens Mount M12
Iris Type Fixed
Aperture F1.6

DORI

DORI

2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video

Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)
Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region of Interest (ROI) 1 fixed region for main stream

Audio

Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host

Up to 32 users

3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day,Night,Auto,Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks

Interface

Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes
Reset Key -F: Yes

Event

Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

Power

12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
Dimension Ø121.4 mm × 97.7 mm (Ø4.8″ × 3.8″)
Package Dimension 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight Approx. 550 g (1.2 lb.)
With Package Weight Approx. 800 g (1.8 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
DS-2CD1143G2-LIU General Function Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval

EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7
Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK08: IEC 62262:2002
