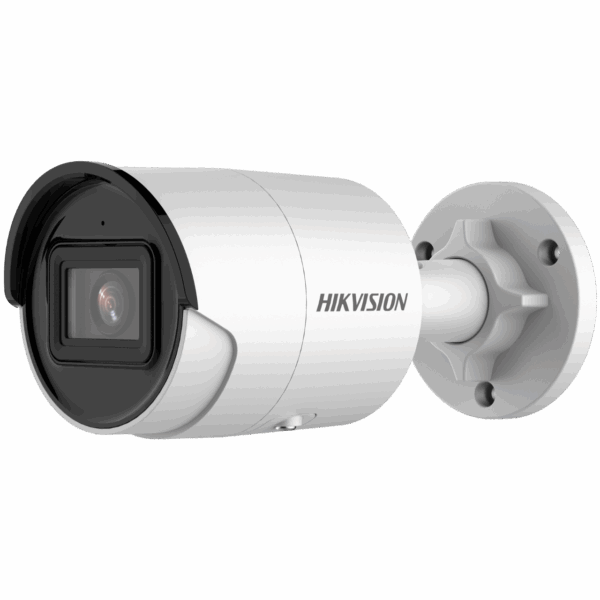

Specifications Hikvision DS-2CD2023G2-I

Features	Description
Product Type	2 MP AcuSense Fixed Bullet Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
Lens	Fixed Focal Lens, 2.8 / 4 / 6 mm
Aperture	F1.6
WDR	120 dB True WDR
IR Range	Up to 40 m
Video Compression	H.265+ / H.265 / H.264+ / H.264
Frame Rate	Up to 25 fps (50 Hz) / 30 fps (60 Hz)
AI Features	AcuSense Human and Vehicle Target Classification
Smart Events	Line Crossing / Intrusion Detection / Face Detection
Storage	MicroSD Card up to 256 GB
Network Interface	1 × RJ45 10/100 Mbps
PoE	IEEE 802.3af, Class 3
Power Supply	12 VDC ±25%
Power Consumption	Max. 6 W
Protection	IP67
Operating Temperature	-30°C ~ 60°C
Dimensions	Approx. 70 × 162 mm
Weight	Approx. 490 g

CAMERA & IMAGE
Image Sensor	1/2.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR
Shutter Time	1/3 s ~ 1/100,000 s
Day & Night	IR Cut Filter
WDR	120 dB True WDR
Noise Reduction	3D DNR
Image Enhancement	BLC / HLC / 3D DNR / ROI
Angle Adjustment	Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

LENS & IR
Lens Type	Fixed Focal Lens
Focal Length	2.8 mm / 4 mm / 6 mm
Aperture	F1.6
Horizontal FOV	107° (2.8 mm) / 87° (4 mm) / 54° (6 mm)
Vertical FOV	57° (2.8 mm) / 46° (4 mm) / 29° (6 mm)
Diagonal FOV	127° (2.8 mm) / 104° (4 mm) / 63° (6 mm)
IR Range	Up to 40 m
IR Wavelength	850 nm
Smart Supplement Light	Supported

VIDEO
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps; 60 Hz: 10 fps
Video Compression	H.265+ / H.265 / H.264+ / H.264
Video Bit Rate	32 Kbps ~ 8 Mbps
H.264 Profile	Baseline / Main / High Profile
H.265 Profile	Main Profile
Bit Rate Control	CBR / VBR
SVC	H.264 and H.265 Encoding
ROI	1 Fixed Region for Main Stream and Sub-Stream

AI & SMART FEATURES
AcuSense	Human and Vehicle Target Classification
Perimeter Protection	Line Crossing / Intrusion Detection
Face Detection	Supported
Motion Detection	Human and Vehicle Target Classification
Video Tampering	Supported

NETWORK & STORAGE
Network Interface	1 × RJ45 10/100 Mbps Self-Adaptive Ethernet
PoE	IEEE 802.3af, Class 3
Network Protocols	TCP/IP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTSP / NTP / SMTP / IGMP / 802.1X / IPv4 / IPv6 / SNMP / SSL/TLS
ONVIF	Profile S / Profile G / Profile T
MicroSD	Up to 256 GB
Network Storage	NAS (NFS, SMB/CIFS) / ANR
Client	iVMS-4200 / Hik-Connect / Hik-Central

POWER & GENERAL
Power Supply	12 VDC ±25%
Power Consumption	Max. 6 W
Protection	IP67
Operating Temperature	-30°C ~ 60°C
Operating Humidity	95% or Less, Non-Condensing
Material	Metal
Dimensions	Approx. 70 × 162 mm
Weight	Approx. 490 g

Note: The Hikvision DS-2CD2023G2-I is a 2MP AcuSense fixed bullet network camera featuring 1920 × 1080 resolution, 120 dB True WDR, H.265+ compression, up to 40 m IR illumination, human and vehicle target classification, perimeter protection, Face Detection, microSD storage up to 256 GB, PoE and IP67 protection. Available fixed lens options are 2.8 mm, 4 mm and 6 mm.
