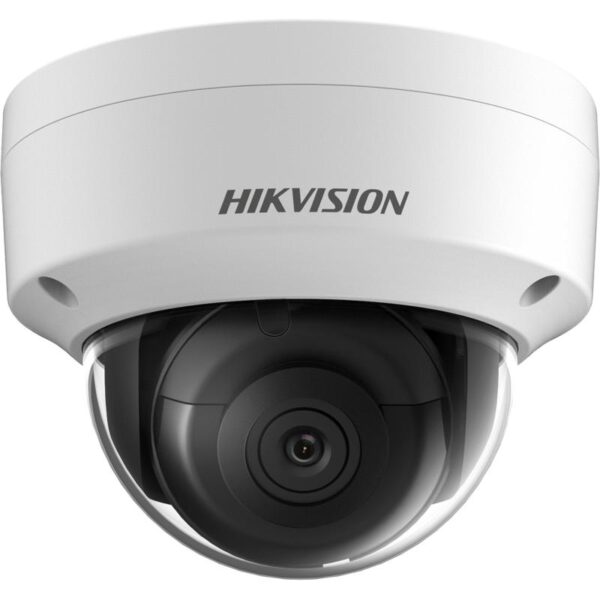

Specifications HIKVISION DS-2CD2126G2-I4
| Features | Description |
|---|---|
| Product Type | 2 MP AcuSense Fixed Dome Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Lens | Fixed 4mm Lens |
| Low-Light Technology | Powered by DarkFighter |
| WDR | 120dB True WDR |
| IR Range | Up to 30m |
| AI Features | AcuSense Human and Vehicle Classification |
| Protection | IP67, IK10 |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Shutter Time | 1/3s to 1/100,000s |
| Min. Illumination | Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR |
| Day & Night | IR Cut Filter |
| Slow Shutter | Yes |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–75°, Rotate: 0°–355° |
| LENS & DORI | |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture | F1.4 |
| Field of View | Horizontal: 86° / Vertical: 47° / Diagonal: 102° |
| Depth of Field | 1.2m to ∞ |
| DORI Distance | Detect: 53m / Observe: 21m / Recognize: 11m / Identify: 5m |
| ILLUMINATOR | |
|---|---|
| Supplement Light | IR |
| IR Range | Up to 30m |
| IR Wavelength | 850nm |
| Smart Supplement Light | Yes |
| VIDEO | |
|---|---|
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (640 × 480); 60Hz: 30fps (640 × 480) |
| Third Stream | 50Hz: 25fps (1280 × 720); 60Hz: 30fps (1280 × 720) |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Bit Rate | 32Kbps to 8Mbps |
| H.264 Profile | Baseline / Main / High Profile |
| H.265 Profile | Main Profile |
| Bit Rate Control | CBR / VBR |
| ROI | Yes |
| IMAGE | |
|---|---|
| WDR | 120dB True WDR |
| S/N Ratio | ≥52dB |
| Day/Night Mode | Day / Night / Auto / Schedule |
| Image Enhancement | BLC / HLC / 3D DNR |
| Image Adjustment | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance |
| Slow Shutter | Yes |
| SMART FEATURES | |
|---|---|
| AcuSense Technology | Deep Learning-based Human and Vehicle Classification |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Face Detection | Yes |
| Line Crossing | Yes |
| Intrusion Detection | Yes |
| Region Entrance | Yes |
| Region Exiting | Yes |
| False Alarm Reduction | Human and Vehicle Target Classification |
| NETWORK | |
|---|---|
| Ethernet | 1 × RJ45 10/100M Self-Adaptive Ethernet Port |
| Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, HTTPS, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP |
| ONVIF | Profile S / Profile G / Profile T |
| API | ISAPI / SDK |
| Network Storage | NAS (NFS, SMB/CIFS), ANR |
| Client Software | iVMS-4200 / Hik-Connect / Hik-Central |
| STORAGE & INTERFACE | |
|---|---|
| Memory Card | Built-in microSD / microSDHC / microSDXC Slot, up to 256GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 × RJ45 10/100M |
| POWER & PROTECTION | |
|---|---|
| Power Supply | 12VDC ±25% or PoE (IEEE 802.3af, Class 3) |
| Power Consumption | Max. 7W |
| PoE | IEEE 802.3af |
| Protection | IP67 / IK10 |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Material | Metal |
| Dimensions | Ø121.4 × 92mm |
| Weight | Approx. 585g |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
Note: The DS-2CD2126G2-I4 is the 4mm lens version of the DS-2CD2126G2-I. It combines AcuSense human/vehicle classification with DarkFighter low-light imaging, 120dB True WDR, and 30m IR illumination.
Important: The standard -I model does not include the built-in microphone and audio/alarm interfaces found on the -ISU variant. The exact lens version should be checked when ordering.
