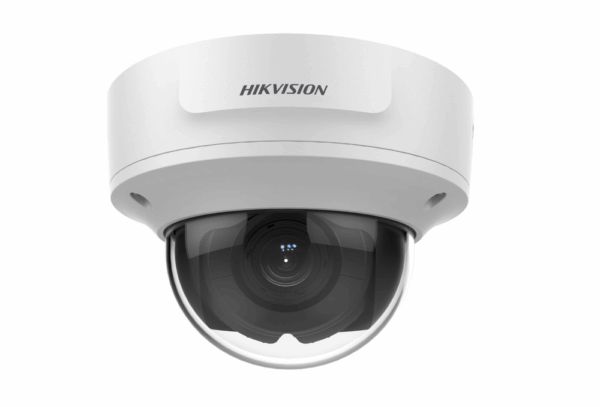

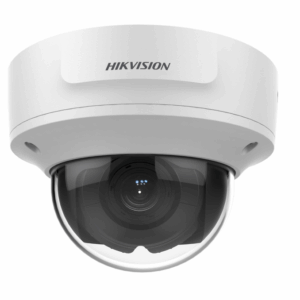

Specifications Hikvision DS-2CD2721G0-IZ
| Features | Description |
|---|---|
| Product Type | 2 MP IR Motorized Varifocal Dome Network Camera |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Lens | Motorized Varifocal Lens, 2.8–12 mm, Auto Focus |
| Aperture | F1.6 |
| WDR | 120 dB True WDR |
| IR Range | Up to 40 m |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Frame Rate | Up to 25 fps (50 Hz) / 30 fps (60 Hz) |
| Smart Features | Line Crossing Detection / Intrusion Detection / Face Detection |
| Storage | Built-in MicroSD Card Slot, up to 256 GB |
| Network Interface | 1 × RJ45 10/100 Mbps |
| PoE | IEEE 802.3af, Class 3 |
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 10 W (12 VDC) / Max. 12 W (PoE) |
| Protection | IP67 / IK10 |
| Operating Temperature | -30°C ~ 60°C |
| Dimensions | Ø153.3 × 111.6 mm |
| Weight | Approx. 880 g |
| CAMERA & IMAGE | |
|---|---|
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Shutter Time | 1/3 s ~ 1/100,000 s |
| Day & Night | IR Cut Filter with Auto Switch |
| WDR | 120 dB True WDR |
| Noise Reduction | 3D DNR |
| Image Enhancement | BLC / HLC / 3D DNR / ROI |
| Angle Adjustment | Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotate: 0° ~ 355° |
| LENS & IR | |
|---|---|
| Lens Type | Motorized Varifocal Lens with Auto Focus |
| Focal Length | 2.8–12 mm |
| Aperture | F1.6 |
| Horizontal FOV | 98° ~ 30° |
| Vertical FOV | 56° ~ 21° |
| IR Range | Up to 40 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Supported |
| VIDEO & AUDIO | |
|---|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Bit Rate | 32 Kbps ~ 8 Mbps |
| H.264 Profile | Baseline / Main / High Profile |
| H.265 Profile | Main Profile |
| Bit Rate Control | CBR / VBR |
| ROI | 1 Fixed Region for Main Stream and Sub-Stream |
| Audio Compression | G.711 μlaw / G.711 Alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC |
| Audio Sampling Rate | 8 kHz / 16 kHz |
| Environment Noise Filtering | Supported |
| SMART FEATURES | |
|---|---|
| Behavior Analysis | Line Crossing Detection / Intrusion Detection |
| Face Detection | Supported |
| Motion Detection | Supported |
| Video Tampering Detection | Supported |
| NETWORK & STORAGE | |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| PoE | IEEE 802.3af, Class 3 |
| Network Protocols | TCP/IP / ICMP / HTTP / HTTPS / FTP / DHCP / DNS / DDNS / RTP / RTSP / RTCP / PPPoE / NTP / UPnP / SMTP / SNMP / IGMP / 802.1X / QoS / IPv6 / Bonjour |
| ONVIF | Profile S / Profile G / Profile T |
| MicroSD | Up to 256 GB |
| Network Storage | NAS (NFS, SMB/CIFS) / ANR |
| Client | iVMS-4200 / Hik-Connect |
| Simultaneous Live View | Up to 6 Channels |
| POWER & GENERAL | |
|---|---|
| Power Supply | 12 VDC ±25% |
| Power Consumption | Max. 10 W (12 VDC) / Max. 12 W (PoE) |
| Protection | IP67 / IK10 |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | 95% or Less, Non-Condensing |
| Material | Front Cover & Base: Metal; Bubble: Plastic |
| Dimensions | Ø153.3 × 111.6 mm |
| Weight | Approx. 880 g |
Note: The Hikvision DS-2CD2721G0-IZ is a 2MP IR motorized varifocal dome network camera featuring a 2.8–12 mm motorized varifocal lens with Auto Focus, 120 dB True WDR, H.265+ compression, up to 40 m IR illumination, Line Crossing and Intrusion Detection, Face Detection, microSD storage up to 256 GB, PoE, IP67 weather resistance and IK10 vandal resistance.
