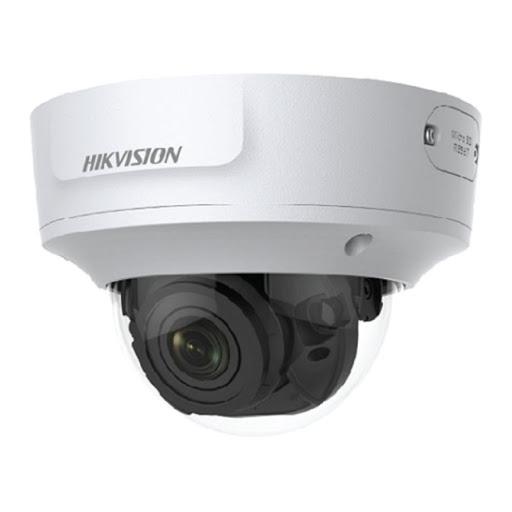

DS-2CD2746G1-IZ(S)
กล้อง HikVision รุ่น DS-2CD2746G1-IZ(S)
4 MP IR Varifocal Dome Network Camera
- ภาพสูงสุด 2688 × 1520 เฟรมเรทสูงสุด 30fps
- H.265, H.264
- True WDR (ย้อนแสง) สูงสุด 120dB
- สี: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @
(F1.4, AGC ON), 0 Lux พร้อม IR - ลดการเตือนภัยที่ผิดพลาดโดยการจำแนกเป้าหมายของ
มนุษย์และยานพาหนะตามการเรียนรู้อย่างลึกซึ้ง - 12 VDC & PoE (802.3af, คลาส 3)
- ช่วง IR: สูงถึง 30 เมตร
- รองรับการจัดเก็บออนบอร์ดสูงสุด 128 GB
- มาตราฐานกันฝุ่นกันน้ำที่ IP67
- มาตราฐานกันกระแทกที่ IK10
- BLC / 3D DNR / ROI
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.7” Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | Horizontal FOV: 101° to 29°, vertical FOV: 54° to 16°, diagonal FOV: 121° to 34° | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Motorized VF lens(-Z model) | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265/H.264/MJPEG | |
| Video bit rate: | 32Kbps~16Mbps | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |
| Frame Rate: | 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Image Enhancement: | BLC/3D DNR | |
| Image Settings: | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser | |
| ROI: | Support 1 fixed region for main stream and sub stream separately | |
| Day/Night Switch: | Day/Night/Auto/Schedule | |
| Network | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Intelligent | ||
|---|---|---|
| Behavior analysis: | Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification | |
| Interface | ||
|---|---|---|
| Audio: | 1 audio input (line in), 1 audio output (line out), mono sound | |
| Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Alarm: | 1 alarm input, 1 alarm output | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm reduction by human and vehicle target classification based on deep learning When H265+, three streams or motion detection is enabled, the behavior analyses (including line crossing detection, intrusion detection, region entrance detection and region exiting detection) are not supported. | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3) | |
| Power Consumption: | 12 VDC, 0.9 A, max. 11 W PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max. 12.9 W |
|
| Weather Proof: | IP67 (If the camera is installed outdoor, the bracket DS-1253ZJ-* should be used together with other pendant mounting bracket or wall mounting bracket to reduce IR reflective in the rainy day) | |
| IR Range: | Up to 30m | |
| Dimensions: | Camera: Φ 153.3 × 111.6 mm (Φ 6″ × 4.4″) | |
| Weight: | Camera: 890 g (2 lb.) With package: 1300 g (2.9 lb.) |
|
