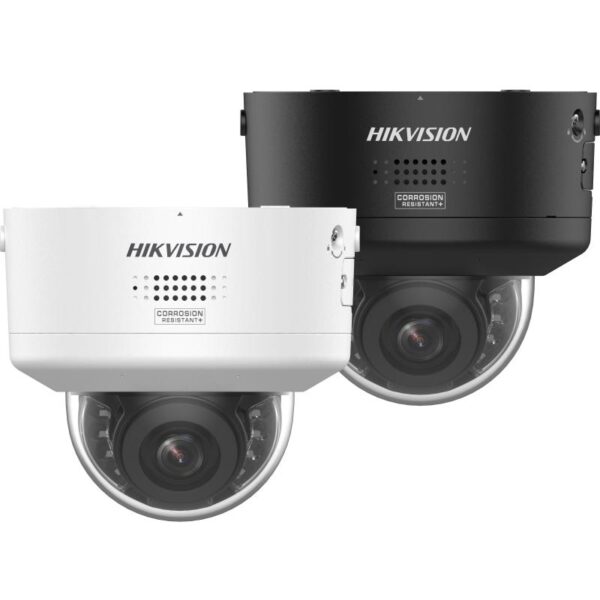

Specifications Hikvision DS-2CD2746G3-IPTRZS2UY/SL
| Features | Description |
|---|---|
| Device Type | 4 MP AcuSense PTRZ Motorized Varifocal Dome Network Camera |
| Brand / Series | Hikvision / Pro Series (EasyIP) with AcuSense Technology |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Lens | 2.8 to 12 mm Motorized Varifocal Lens with PTRZ Capability (Pan/Tilt/Rotate/Zoom) |
| Max. Resolution | 4 Megapixel (2688 × 1520) @ 30/25 fps |
| Illuminator Type | Smart IR & White Light Strobe Alarm (/SL Model) |
| Illumination Range | Up to 40 m (131 ft) IR Range |
| Audio Features | Built-in Arrayed Dual-Microphone & Smart PA Speaker (Two-Way Audio) |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Protection Standards | IP67 (Water/Dust), IK10 (Vandal), NEMA 4X (Anti-Corrosion) |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|---|---|
| Angle Adjustment (PTRZ) | Remote adjustment via software (Pan: 0° to 350°, Tilt: 0° to 85°, Rotate: 0° to 350°) |
| Image Settings & Enhancement | 130 dB True WDR, 3D DNR, BLC, HLC, ROI, and Digital Defog |
| Power Supply & Consumption | 12 VDC ± 25% (Max. 15.6 W) or PoE+ (IEEE 802.3at, Class 4, Max. 18 W) |
| SMART FEATURES | |
|---|---|
| AcuSense Deep Learning | Intelligently classifies human and vehicle targets, drastically reducing false alarms triggered by animals, leaves, or shifting light |
| Remote PTRZ Configuration | Allows installers and administrators to remotely adjust the pan, tilt, rotation, and optical zoom without physically opening the camera dome, simplifying setup and maintenance |
| Active Deterrence (/SL) | Features an integrated white flashing strobe light and an audible warning (via built-in speaker) to actively deter intruders upon event detection |
| Anti-Corrosion & Vandal-Proof | Engineered with a robust NEMA 4X and IK10-rated housing, making it highly resistant to corrosive environments, vandalism, and extreme weather |
| GENERAL | |
|---|---|
| Dimensions & Weight | Ø 155 mm × 140.4 mm (Ø 6.10″ × 5.53″), Approx. 1230 g (2.71 lb) |
| Operating Conditions | -30°C to 60°C (-22°F to 140°F), Humidity 95% or less (non-condensing) |
| Interface Options | 1 RJ45 10M/100M port, Audio I/O (Terminal Block), Alarm I/O, Built-in MicroSD slot (up to 512 GB) |
Note: The Hikvision DS-2CD2746G3-IPTRZS2UY/SL is a highly advanced 4MP motorized dome camera designed for demanding commercial applications. It integrates PTRZ capability for effortless remote positioning, AcuSense AI for precise target classification, and active strobe/audio deterrence to proactively secure premises.
Important: The “/SL” designation signifies the inclusion of a brilliant white strobe light, which, paired with the built-in speaker, serves as an active visual and auditory deterrent against potential intruders before a breach occurs.
