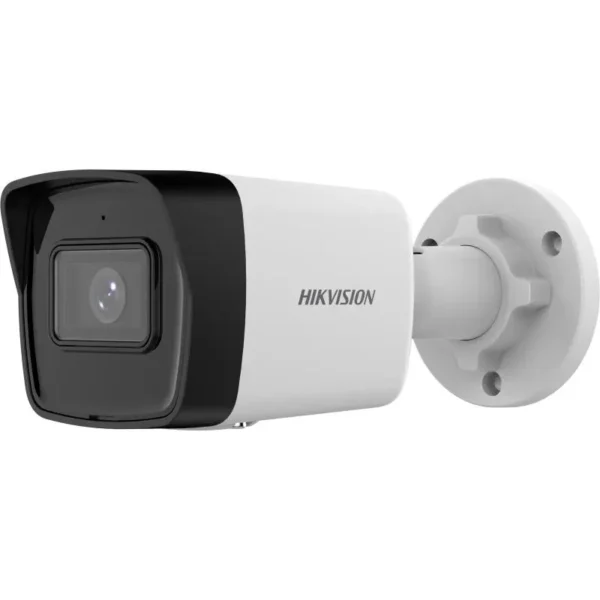

Hikvision DS-2CD3021G0-I

2MP Fixed Bullet Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to WDR technology
• 3D DNR technology delivers clean and sharp images
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

กล้อง

• Image Sensor1/2.7″ Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100, 000 s
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focal Length & FOV

  2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133°

  4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 109°

  6 mm, horizontal FOV 56°, vertical FOV 29°, diagonal FOV 65°

• Lens MountM12
• ApertureF1.6

DORI

• DORI

  2.8 mm: D: 43 m, O: 17 m, R: 9 m, I: 5 m

  4 mm: D: 53 m, O: 21 m, R: 11 m, I: 6 m

  6 mm: D: 86 m, O: 34 m, R: 17 m, I: 9 m

Illuminator

• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• IR Wavelength850 nm

Video

• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  50 Hz: 1 fps (640 × 360)

  60 Hz: 1 fps (640 × 360)

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, ONVIF
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+


• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, HLC, 3D DNR

Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic EventMotion detection, video tampering alarm, exception
• Smart EventLine crossing detection, intrusion detection
• LinkageUpload to FTP, notify surveillance center, send email, trigger capture

General

• Power

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• MaterialMetal & Plastic
• Dimension170.8 mm × 66 mm × 69.1 mm (6.72″ × 2.59″ × 2.7″)
• Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• WeightApprox. 270 g (0.6 lb.)
• With Package WeightApprox. 481 g (1.1 lb.)
• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 62368-1)

  CB (IEC 62368-1: 2014+A11)

  CE-LVD (EN 62368-1: 2014/A11: 2017)

  BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013)
