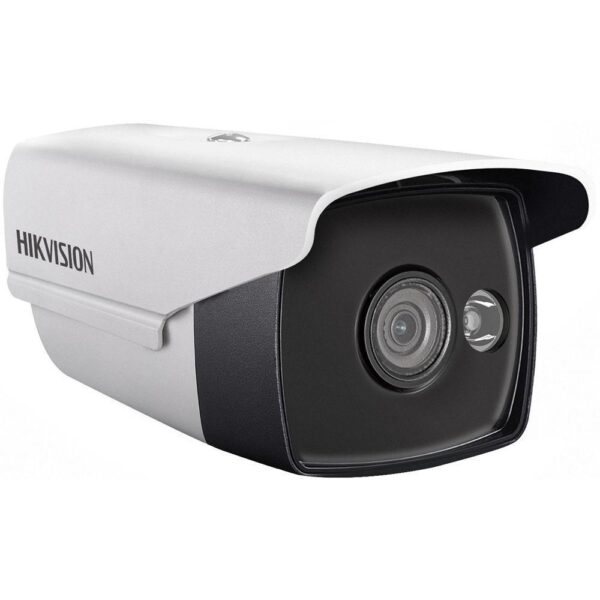

DS-2CE16D0T-WL5

Camera

Image Sensor

2MP CMOS image sensor

Resolution

1920 (H) x 1080 (V)

Minimum Illumination

0.01 lux at (f/1.2, AGC on)

Shutter Speed

1/30s to 1/50, 000s

Lens

6mm fixed lens

Horizontal Field of View

54 deg.

Lens Mount

M12

Day/Night

Color

Angle Adjustment

Pan: 0 deg. to 360 deg. , tilt: 0 deg. to 90 deg.

Signal System

NTSC

Frame Rate

1080p at 25 fps, 1080p at 30 fps

Synchronization

Internal Synchronization

HD Video Output

1 analog HD output

S/N Ratio

>62dB

General

Operating Conditions

-40 to 140 deg. F / -40 to 60 deg. C, Humidity: 90% or less (non-condensation)

Power Supply

12 VDC +/- 10%

Power Consumption

Maximum 1W (supplemental white light off), maximum 4.5W (supplemental white light on)

Protection Level

IP66

IR Range

Up to 165′ (50m)

White Light Range

Up to 165′ (50m)

Communication

Up-the-Coax, Protocol: HIKVISION-C (HD-TVI output)

Dimensions

7.64 x 3.68 x 3.70″ (19.41 x 9.35 x 9.40cm)

Weight

Approx. 0.99 lbs (0.45kg)
