| Features |
Description |
| Product Type |
16-Port Gigabit Unmanaged PoE Switch |
| PoE Ports |
16 × Gigabit PoE Ports |
| Uplink Ports |
2 × Gigabit SFP Fiber Optical Ports |
| PoE Standard |
IEEE 802.3af / 802.3at |
| PoE Budget |
125W |
| Max. Port Power |
30W per Port |
| Switching Capacity |
36Gbps |
| Packet Forwarding Rate |
26.79Mpps |
| Network Parameters |
| Port Number |
16 × Gigabit PoE Ports + 2 × Gigabit SFP Ports |
| Port Type |
RJ45, Full Duplex, MDI/MDI-X Adaptive |
| Network Standards |
IEEE 802.3 / 802.3u / 802.3x |
| Forwarding Mode |
Store-and-Forward Switching |
| MAC Address Table |
8K |
| Internal Cache |
4.1Mbits |
| PoE Power Supply |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Ports |
Ports 1–16 |
| Max. Port Power |
30W per Port |
| PoE Power Budget |
125W |
| PoE Power Pin |
End-Span: 1/2(+) and 3/6(-) |
| Surge Protection |
6KV for PoE Ports |
| Fiber Interface |
| SFP Ports |
2 × Gigabit SFP Fiber Optical Ports |
| Data Rate |
1000Mbps |
| Fiber Type |
Supports Single-Mode and Multi-Mode Fiber via SFP Modules |
| Power & Physical |
| Power Supply |
100–240V AC, 50/60Hz, Max. 2.5A |
| Max. Power Consumption |
150W |
| Idle Power Consumption |
25W |
| Installation |
Rack Mount with Mounting Ears |
| Shell |
Metal |
| Dimensions |
440 × 44 × 220.8mm |
| Net Weight |
2.50kg |
| Environment |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
5% to 95%, Non-condensing |
| Surge Protection |
6KV |

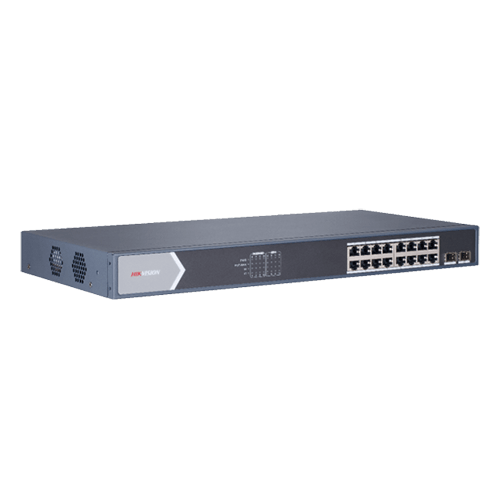

Note: DS-3E0518P-E/M is an unmanaged Layer 2 PoE switch with 16 Gigabit PoE ports and 2 Gigabit SFP fiber uplink ports. It supports IEEE 802.3af/at PoE with a total PoE power budget of 125W.
Important: The DS-3E0518P-E/M is an unmanaged switch and does not provide advanced network management functions such as VLAN configuration or web-based management.
