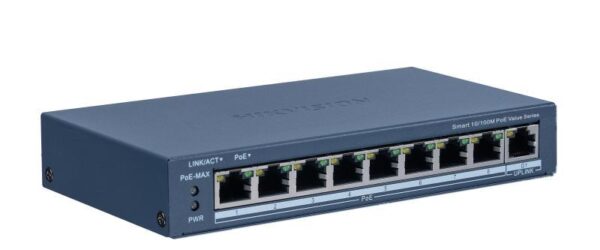

DS-3E1309P-EI/M 8 Port Fast Ethernet Smart POE Switch

  • พอร์ต PoE 8 × 10/100 Mbps, พอร์ต 1 × Gigabit RJ45
  • งบประมาณพลังงาน PoE ทั้งหมด 60 W
  • รองรับ 802.1Q VLAN
  • ระบบเฝ้าระวัง PoE เพื่อตรวจจับและรีสตาร์ทกล้องที่ไม่ตอบสนอง
  • รองรับการป้องกันลูป STP/RSTP
  • รองรับการตรวจจับสายเคเบิลเพื่อค้นหาความล้มเหลว
  • การส่งสัญญาณ PoE ระยะไกลสูงสุด 300 ม.
  • การป้องกันไฟกระชาก 6 kV
หมวดหมู่:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

DS-3E1309P-EI/M

DS-3E1309P-EI/M 8 Port Fast Ethernet Smart POE Switch

คุณสมบัติ

Shell Metal material, fan-free design
Net Weight 0.4 kg (0.9 lb)
Gross Weight 0.9 kg (2.0 lb)
Dimensions (W × H × D) 170.00 mm × 27.60 mm × 93.10 mm (6.69” × 1.09” × 3.67”)
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 54VDC, 1.2A
Installation Mode Desk-Mounted,Wall-Mounted
Max. Power Consumption 65 W
Power Consumption in Idle 5 W
Surge Protection 6 kV

Network Parameters

Ports 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port
MAC Address Table 8 K
Switching Capacity

Whole-Device Performance: 5.6 Gbps

Port Performance: 3.6 Gbps
Packet Forwarding Rate

Whole-Device Performance: 4.17 Mpps

Port Performance: 2.68 Mpps
Internal Cache Internal Cache

PoE Power Supply

PoE Standard IEEE 802.3af,IEEE 802.3at
PoE Power Pin End-span: 1/2(-), 3/6(+)
PoE Port PoE Port
Max. Port Power 30 W
PoE Power Budget 60 W

Software Function

Long Range

Ports 1 to 8: up to 300 m.

Long range performance may vary depend on camera model or cable condition.
HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:DS-3E1309P-EI/M

1. Display the port rate.

2. Display the port bandwidth utilization rate.

3. Display the PoE power usage.

4. Display topology information.

5. Display the alarm status.

6. Restart ports and devices.

7. Enable port long-rage mode.

8. Remotely upgrade the device.
Port Isolation

Ports 1 to 8: DS-3E1309P-EI/M port isolation mode to improve network security

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
System Maintenance

Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

Support management via Hik-Central Pro.

Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

Supports 802.1ab LLDP for peer device discovery.

Support port mirroring for fault locating.
PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP.

Suppport 802.1w RSTP.
VLAN

VLAN is used for network scale planning and network health improvement.

Support 802.1Q.

Configurable VLAN ID from 1-4094.

Support Trunk, Access port mode.

Support Max. 4094 VLAN.

Approval

EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
