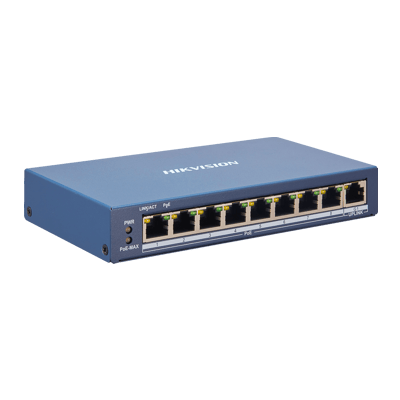

DS-3E1309P-EI

Hikvision DS-3E1309P-EI

• DS-3E1309P-EI 8 × 100 Mbps PoE RJ45 ports, 1 × gigabit network RJ45 port.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• AF/AT camera can reach up to 300 m in extend mode

Network Parameters

• Port Number8 × 10/100 Mbps PoE ports, and 1 × Gigabit RJ45 port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive

• Working Mode
  • Standard mode (default)
  • Extend mode

• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
• Forwarding ModeStore-and-forward switching
• MAC Address Table16 K
• Internal Cache4 Mbits
• Switching Capacity3.6 Gbps
• Packet Forwarding Rate2.6784 Mpps

PoE Power Supply

• PoE StandardIEEE 802.3af, IEEE 802.3at

• PoE Power Pin
  • End-span: 1/2(-), 3/6(+)
  • Mid-span: 4/5(+), 7/8(-)
  • 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPorts 1 to 8
• Max. Port Power30 W
• PoE Power Budget110 W

Software Function

• Port ConfigurationSupport rate, flow control, and switch configuration
• Device MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
• PoE Function IEEE 802.3at/af device provides power supply.
• PoE Configuration

  PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.

  PoE enabling: Support

General

• DS-3E1309P-EI ShellMetal material, fan-free design
• Net Weight0.35 kg (0.77 lb)
• Gross Weight1.114 kg (2.45 lb)
• Dimension (W × H × D)170 mm × 27.6 mm × 93.1 mm (4.76” × 3.47” × 1.09”)
• Operating Temperature0°C to 40°C (32°F to 104°F)
• Storage Temperature-40°C to 85°C (-40°F to 185°F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 2.5 A
• DS-3E1309P-EI Max. Power Consumption120 W

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
