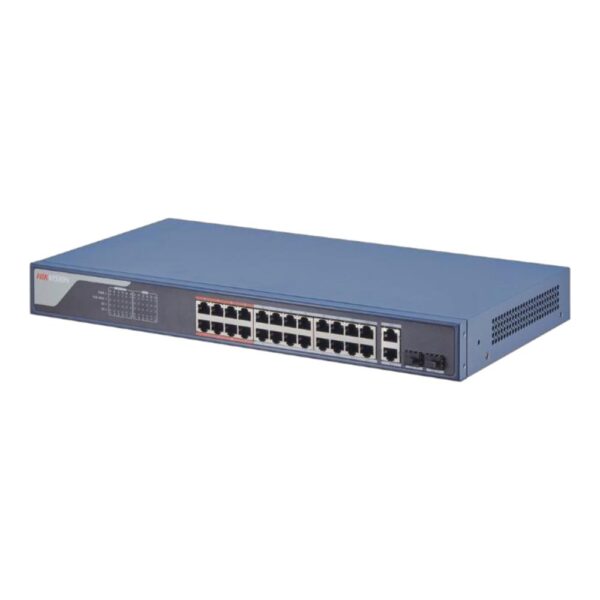

HIKVISION DS-3E1326P-EI

24 Port Fast Ethernet Smart POE Switch

• DS-3E1326P-EI 24 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.

Specification

Network Parameters

• DS-3E1326P-EI Port TypeRJ45 port,full duplex,MDIMDI-X adaptive
• ท่าเรือ24 × 10/100 Mbps PoE port,2 × 1 Gigabit combo
• StandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
• High Priority PortsPorts 1 to 8
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default),Extend mode
• MAC Address Table16 K
• Switching Capacity8.8 Gbps
• Packet Forwarding Rate6.5472 Mpps
• Internal Cache4 Mbits

PoE Power Supply

• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPoE: Ports 1 to 24
• Max. Port Power30 W
• PoE Power Budget370 W

Software Function

• Device MaintenanceSupport remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.
• PoE ConfigurationSupport port rate configuration, flow control, and ports enabling.

General

• ShellMetal material
• Net Weight2.83 kg (6.24 lb)
• Gross Weight3.800 kg (8.38 lb)
• Dimensions (W × H × D)440.00 mm × 44.00 mm × 221.00 mm (17.32” × 1.73” × 8.70”)
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply100-240 VAC, 50/60 Hz, Max. 6.5 A
• Max. Power Consumption400 W

Approval

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
