| Features |
Description |
| Product Type |
8-Channel Mini 1U 8 PoE Network Video Recorder |
| IP Video Input |
8 Channels |
| Maximum IP Resolution |
Up to 6 MP |
| Incoming Bandwidth |
60 Mbps |
| Outgoing Bandwidth |
60 Mbps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution |
6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability |
4-ch @ 1080p / 2-ch @ 4 MP / 1-ch @ 6 MP |
| Synchronous Playback |
4 Channels |
| HDMI Output |
1 × HDMI, up to 1920 × 1080p @ 60Hz |
| VGA Output |
1 × VGA, up to 1920 × 1080p @ 60Hz |
| Video Output |
HDMI / VGA Simultaneous Output |
| PoE Ports |
8 × RJ45 10/100 Mbps |
| PoE Standard |
IEEE 802.3af / 802.3at |
| PoE Budget |
Up to 75 W |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| SATA |
1 × SATA Interface |
| HDD Capacity |
Up to 6 TB |
| USB |
2 × USB 2.0 |
| Alarm I/O |
Not Available |
| Remote Connection |
Up to 16 Remote Connections |
| Smart Function |
Line Crossing / Intrusion Detection / Smart Search / Smart Playback |
| Network Protocol |
TCP/IP / DHCP / DNS / DDNS / NTP / SADP / SMTP / UPnP / Hik-Connect |
| Power Supply |
48 VDC, 1.8 A |
| Power Consumption |
≤ 10 W |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Dimensions |
265 × 223 × 48 mm |
| Weight |
≤ 1 kg |
| Certification |
CE |
| RECORDING & DECODING |
| Recording Resolution |
Up to 6 MP |
| Decoding |
4-ch @ 1080p / 2-ch @ 4 MP / 1-ch @ 6 MP |
| Playback |
Up to 4 Channels Synchronous Playback |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Bandwidth |
60 Mbps Incoming / 60 Mbps Outgoing |
| POE |
| PoE Ports |
8 × RJ45 10/100 Mbps |
| PoE Standard |
IEEE 802.3af / 802.3at |
| PoE Budget |
75 W |
| PoE Application |
Direct Connection to IP Cameras |
| STORAGE & INTERFACE |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
6 TB |
| USB |
2 × USB 2.0 |
| Network Port |
1 × RJ45 10/100 Mbps |
| APPLICATION |
| CCTV System |
8-Channel IP Surveillance System |
| PoE Camera System |
Direct PoE Connection for up to 8 IP Cameras |
| Smart Surveillance |
Line Crossing / Intrusion Detection / Smart Search |
| Remote Monitoring |
Hik-Connect Remote Management |

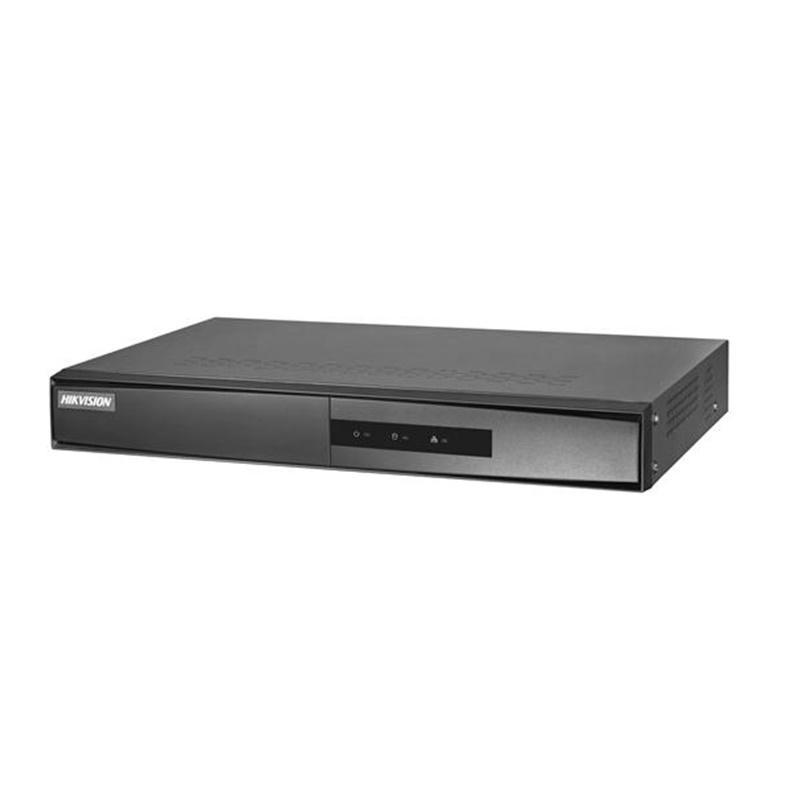

Note: The Hikvision DS-7108NI-Q1/8P/M is an 8-channel Mini 1U NVR with 8 built-in PoE ports, supporting up to 6 MP IP cameras, 60 Mbps incoming and outgoing bandwidth, H.265+ compression, 4-channel 1080p decoding, HDMI and VGA simultaneous output, one SATA interface supporting up to 6 TB HDD, and a 75 W PoE budget. It is suitable for small to medium IP surveillance systems.
