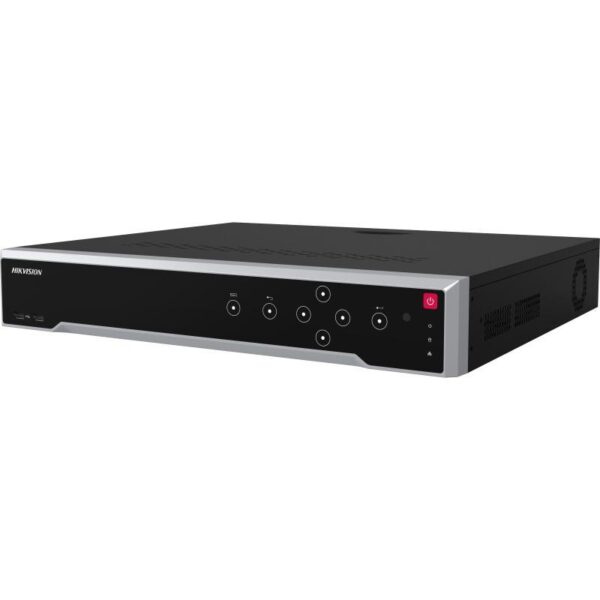

Specifications HIKVISION DS-7732NI-M4
| Features | Description |
|---|---|
| Product Type | 32-Channel 8K Network Video Recorder |
| IP Camera Input | 32 Channels |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Decoding | Up to 40-ch@1080p |
| HDMI Output | Up to 8K (7680 × 4320) @ 30 Hz |
| HDD Interface | 4 × SATA, Up to 14 TB per HDD |
| Network Interface | 2 × RJ45 10/100/1000 Mbps |
| eSATA | 1 × eSATA Interface |
| Alarm I/O | 16 Inputs / 9 Outputs |
| USB | 2 × USB 2.0 Front, 1 × USB 3.0 Rear |
| Chassis | 19-inch Rack-Mounted, 1.5U |
| Power Supply | 100–240 VAC, 50–60 Hz |
| Dimensions | 445 × 400 × 75 mm |
| Application | Description |
|---|---|
| CCTV System | 32-Channel IP Video Surveillance System |
| High-Resolution | Supports IP Cameras up to 32 MP |
| Storage | Up to 4 HDDs for Long-Term Video Recording |
| Video Output | 8K HDMI and Independent HDMI/VGA Outputs |
| Smart Surveillance | VCA, ANPR, Heat Map and People Counting |
Note: DS-7732NI-M4 is a 32-channel 1.5U M Series 8K NVR with 320 Mbps incoming bandwidth and four SATA interfaces.
Important: DS-7732NI-M4 is the non-PoE version; IP cameras require an external PoE switch or power source.
