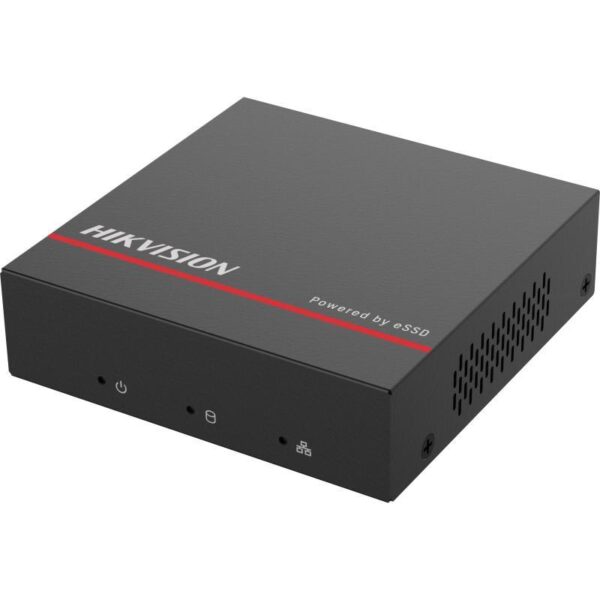

Specifications Hikvision DS-E04NI-Q1
| Features | Specifications |
|---|---|
Video and Audio |
|
| IP Video Input | 4 channels |
| Incoming Bandwidth | Up to 40 Mbps |
| Outgoing Bandwidth | Up to 60 Mbps |
| Video Compression | H.265, Smart265, H.264, Smart264 |
| Recording Resolution | Up to 4MP |
| Synchronous Playback | 4 channels |
| Decoding Capability | 4-ch @ 1080p (25 fps) |
| Audio Compression | G.711u-law, G.711a-law, G.722, G.726 |
Video Output |
|
| HDMI Output | 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
Network |
|
| Network Interface | 1× RJ-45 10/100 Mbps self-adaptive Ethernet |
| Remote Connection | Up to 128 channels |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Remote Management | Hik-Connect |
Storage |
|
| Storage | 1TB SSD pre-installed |
| Storage Technology | eSSD integrated storage design |
Interfaces |
|
| USB | 2× USB 2.0 |
| Video Output | 1× HDMI |
Power and Environment |
|
| Power Supply | 12VDC, 1A |
| Power Consumption | ≤ 10W with SSD |
| Working Temperature | -10°C to 45°C |
| Working Humidity | 10% to 90% |
Physical |
|
| Dimensions | 95 × 97 × 27 mm |
| Weight | ≤ 0.5 kg |
Note: The Hikvision DS-E04NI-Q1 is a compact 4-channel SSD NVR with a pre-installed 1TB SSD. It supports up to 4MP recording, H.265+/H.265/H.264+/H.264 compression, up to 40 Mbps incoming bandwidth, 60 Mbps outgoing bandwidth, and up to 4-channel 1080p decoding. The standard DS-E04NI-Q1 does not include built-in PoE ports; the PoE version is the separate DS-E04NI-Q1/4P model. :contentReference[oaicite:0]{index=0}
