| Features |
Specifications |
| Product Type |

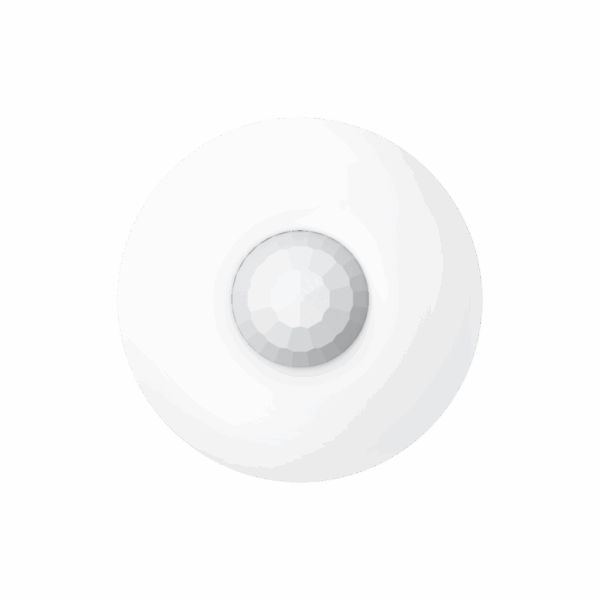

Wireless PIR Ceiling Detector |
| Detection Method |
Passive Infrared (PIR) |
| Detection Range |
12m |
| Detection Angle |
360° |
| Detection Zones |
172 zones |
| Detectable Speed |
0.3 to 2m/s |
| Sensitivity |
Auto, Low |
| White Light Filter |
6500 lux |
| Digital Temperature Compensation |
Supported |
| Creep Zone Protection |
Supported |
| Digital Processing |
Supported |
| Sealed Optics |
Supported |
| Tamper Protection |
Front and Rear |
| Environment Temperature Indicator |
Supported |
| Signal Strength Indicator |
Supported |
Wireless Communication
| Features |
Specifications |
| Wireless Technology |
Tri-X Wireless |
| Communication |
Two-Way RF Wireless |
| RF Frequency |
433MHz |
| RF Security |
AES-128 Encryption |
| RF Range |
Up to 800m in open area |
| Frequency Hopping |
Supported |
| Enrollment Methods |
Power Up, Remote ID, QR Code |
| LED Indicator |
Blue (Alarm) |
Power & General
| Features |
Specifications |
| Power Supply |
Battery Powered |
| Battery |
1 × CR123A, 3V / 1600mAh |
| Battery Life |
Up to 5 years |
| Operating Temperature |
-10°C to +55°C |
| Storage Temperature |
-20°C to +60°C |
| Operating Humidity |
10% to 90% |
| Mounting Height |
2.4 to 4m |
| Mounting Method |
Ceiling |
| Application |
Indoor |
| Dimensions |
Ø101.2 × 32.9mm |
| Weight |
109.5g |
Note: The wireless transmission range is up to 800m in an open area and may vary depending on the installation environment.
Important: Battery life may vary depending on usage and operating conditions.
