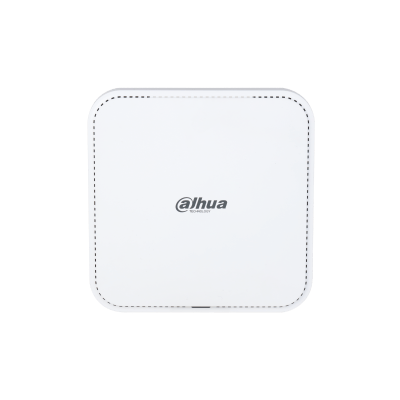

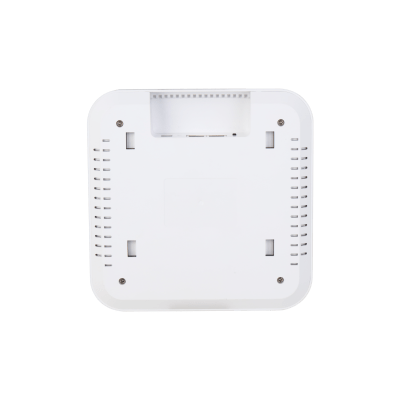

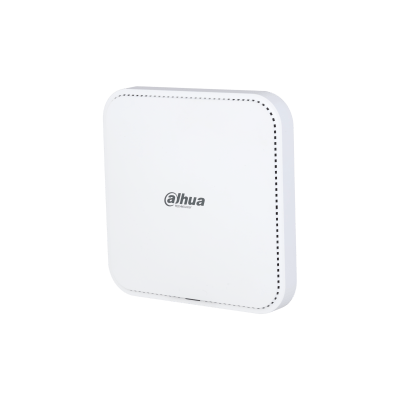

EAP6230-C

Hardware EAP6230-C

Function Slots

1 x 10/100/1000 Mbps Base-T RJ-45 (WAN, PoE)

Power Consumption

Full Load: 15 W

Memory

DDR: 512 MB
Flash: 8 MB
NAND: 128 MB

Indicator Light

SYS;
WAN/PoE

Wireless Standard

2.4 GHz: IEEE 802.11b/g/n/ax
5 GHz: IEEE 802.11a/n/ac/ax

Performance

Operating Frequency

2.4 GHz–2.484 GHz
5.150 GHz–5.850 GHz

Wireless Transmission Rate

2.4 GHz: 574 Mbps
5 GHz: 1201 Mbps

Channel Width

20/40/80/160 MHz

Max. Output Power

25 dBm

Antenna Gain

2.4 GHz: 4 dBi
5 GHz: 5 dBi

Antenna Direction Angle

360°

Optimal Transmission Distance

15 m (49.21 ft)

Function EAP6230-C

Operating Mode

FIT AP
FAT AP

Encryption Mode

WPA-PSK/WPA2-PSK
WPA3-PSK

Management and Log

NTP; Syslog

Firmware Update

Web update
AC remote update

Security Mechanism

SSID hiding
MAC authentication
IP-MAC binding
User isolation
Max allowed clients per AP
URL filtering
IP address filtering
MAC address filtering

Network Protocol

UDP;IPv4;IP Filter;DNS;HTTP;PPPoE;NTP;DHCP;Qos;TCP/IP;DDNS;UPnP;ICMP

OFDMA

Yes

MU-MIMO

Yes

DFS

Yes

DHCP

Yes

NAT

Port Mapping;
DMZ

QoS

IP-based speed limit

DDNS

Yes

Equipment Management

Local WEB management

Software

Independent A
Configure VLAN based on SSID;
Auto channel
Power adjustment
5G Precedence
SSID extender
WiFi Timer
Pass through on VPN connection
Configure information restore/back up

General

Power Supply

12 VDC,1.5 A
PoE (802.3 at)

Operating Temperature

–20 °C to 45 °C (–4 °F to +113 °F)

Storage Temperature

–40°C to 70 °C (–40 °F to +158 °F)

Operating Humidity

5%-95% (RH)

Gross Weight

0.89 kg (1.96 lb)

Net Weight

0.55 kg (1.21 lb)

Packaging Dimensions

243 mm × 235 mm × 76 mm
(9.56″ × 9.25″ × 2.99″)(L × W × H)

Product Dimensions

188 mm × 188 mm × 37 mm
(7.40″ × 7.40″ × 1.46″)(L × W × H)

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV

Installation

In-ceiling mount

Certifications

CE
FCC
