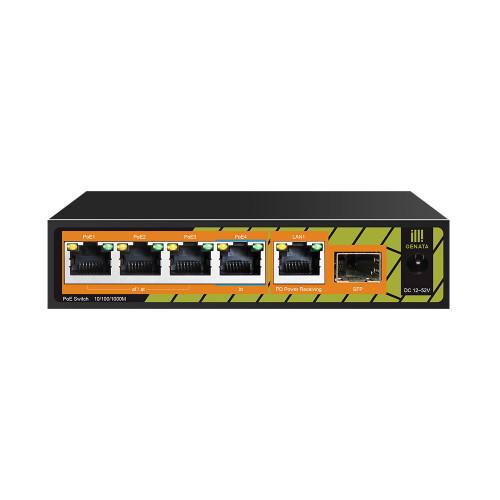

GNT-P1006G6

SPECIFICATON

• Ports 4X10/100/1000Mbps PoE ports (RJ45)
• 1X10/1000Mbps uplink port (RJ45)
• 1X10/1000Mbps SFP
• Transmission Rate 2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex
• Transmission Distance 0-100m
• Bandwidth: 12.0Gbps
• Network Latency (10 to 1000Mbps): ≦16μs (use the 64byte package size)
• MAC address table: 8K
• IEEE 802.3i 10BASE-T
• IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T
• IEEE 802.3xFlowControl
• IEEE 802.3af/at/bt Power over Ethernet
• Power input: DC 12~52V; PoE powered by Total≤60W
• PoE Watchdog: Port 1~4
• Power output: PoE1~3Port:1/2(+52V),3/6(GND)≤30W
• PoE 4 Port:1245(+53V),3678(GND) compatible1/2(+52V),3/6(GND)≤60W
• Lightning Protection:6KV, Per: IEC61000-4-5
• ESD Protection:8KV, Per: IEC61000-4-2
• Size(L*W*H)：130mm*65mm*31mm
• CE mark
• FCCPart15，Class B
• VCCI ClassBEN55022 (CISPR 22)
