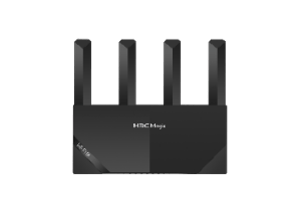

Specifications H3C Magic NX15-US
| Features | Specifications |
|---|---|
| Product Type | Dual-Band Gigabit Wi-Fi 6 Wireless Router |
| Wireless Standard | IEEE 802.11ax/ac/n/a on 5GHz; 802.11n/g/b on 2.4GHz |
| Wireless Speed | Up to 1501 Mbps |
| 2.4GHz Speed | Up to 300 Mbps |
| 5GHz Speed | Up to 1201 Mbps |
| Spatial Streams | 2×2 MIMO on 2.4GHz and 5GHz |
| Wireless Bandwidth | 2.4GHz: HT20/HT40; 5GHz: HT20/HT40/HT80 |
| MU-MIMO | Upstream and Downstream MU-MIMO |
| Wireless Roaming | IEEE 802.11k/v |
Interfaces & Antenna
| Features | Specifications |
|---|---|
| Ethernet Ports | 4 × 10/100/1000BASE-T Gigabit Ethernet Ports |
| Antenna | 4 × External 5 dBi Omnidirectional Antennas |
| Mesh | EasyMesh Support |
| Button | Reset + Mesh Button |
| LED | System Status LED |
Network Features
| Features | Specifications |
|---|---|
| Internet Connection | DHCP, PPPoE, Static IP |
| Bridge Mode | Wired Repeating / Wireless Repeating |
| IPv6 | Supported |
| Security | WPA3, Anti-Piggybacking, Firewall, DMZ |
| Guest Wi-Fi | Supported |
| Access Control | Access Allowlist / Denylist |
| Parental Control | Multiple Time-Range Control |
| Traffic Control | IP-Based Traffic Control |
| QoS | Traffic Shaping |
| VPN | PPTP Client / L2TP Client |
| DDNS | NoIP / DynDNS |
| Special Feature | Packet Fast Forwarding Engine |
Management & Hardware
| Features | Specifications |
|---|---|
| Management | H3C Magic APP for iOS / Android and Web Management |
| Fault Diagnosis | Internet Access Diagnosis / Link Detection |
| Memory | 128 MB RAM |
| Flash | 16 MB |
| Cooling | Passive Cooling |
| Power Consumption | ≤ 12 W |
| Dimensions | 180 × 195 × 57.3 mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Certification | CE, CB, RoHS, WEEE |
Note: H3C Magic NX15 supports EasyMesh for whole-home Wi-Fi coverage and uses four external 5 dBi omnidirectional antennas.
Important: The wireless rate of 1501 Mbps is the combined theoretical rate of the 2.4GHz and 5GHz bands. Actual wireless performance may vary depending on the environment, client devices and network conditions.
