| Features |
Description |
| Camera Type |
2 MP Smart Hybrid Light Fixed Turret Network Camera |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Lens |
2.8 mm / 4 mm Fixed Focal Lens |
| Supplement Light |
IR + White Light, up to 30 m |
| Audio |
Built-in Microphone with Two-Way Audio |
| Storage |
MicroSD Card up to 512 GB |
| PoE |
IEEE 802.3af, Class 3 |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/2.9″ Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.005 Lux @ F1.6, AGC ON; B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR Cut Filter |
| Angle Adjustment |
Pan: 0–360°, Tilt: 0–75°, Rotate: 0–360° |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm / 4 mm |
| Lens Mount |
M12 |
| Aperture |
F1.6 |
| 2.8 mm FOV |
Horizontal: 103°, Vertical: 56°, Diagonal: 121° |
| 4 mm FOV |
Horizontal: 83°, Vertical: 44°, Diagonal: 99° |
| DORI |
2.8 mm: Detect 45 m, Observe 18 m, Recognize 9 m, Identify 4 m |
| DORI |
4 mm: Detect 56 m, Observe 22 m, Recognize 11 m, Identify 5 m |
| ILLUMINATOR |
| Supplement Light Type |
IR + White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Supported |
| IR Wavelength |
850 nm |
| VIDEO |
| Main Stream |
50 Hz: 25 fps at 1920 × 1080 / 1280 × 720; 60 Hz: 30 fps at 1920 × 1080 / 1280 × 720 |
| Sub Stream |
50 Hz: 25 fps at 640 × 480 / 640 × 360; 60 Hz: 30 fps |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Sub Stream Compression |
H.265 / H.264 / MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Profile |
Baseline / Main / High Profile |
| H.265 Profile |
Main Profile |
| Bit Rate Control |
CBR / VBR |
| ROI |
1 Fixed Region for Main Stream |
| IMAGE & SMART FEATURES |
| WDR |
Digital WDR |
| Image Enhancement |
BLC / HLC / 3D DNR |
| Smart Detection |
Human and Vehicle Detection |
| Privacy Mask |
Supported |
| Image Functions |
Mirror / Anti-Banding / Heartbeat |
| AUDIO |
| Audio Type |
Mono Sound |
| Microphone |
Built-in Microphone |
| Audio Function |
Two-Way Audio |
| Noise Filtering |
Supported |
| Sampling Rate |
8 kHz / 16 kHz |
| Audio Compression |
G.711 μ-law / G.711 A-law / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC |
| NETWORK & STORAGE |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| PoE |
IEEE 802.3af, Class 3, Max. 6.5 W |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP |
| ONVIF |
Profile S / Profile T / Profile G for -F Model |
| API |
ISAPI / SDK |
| Storage |
MicroSD / SDHC / SDXC up to 512 GB |
| Client Software |
iVMS-4200 / Hik-Connect |
| SECURITY |
| Security Features |
Password Protection, Complicated Password, Watermark, HTTP Authentication, Security Audit Log |
| User Management |
Up to 32 Users |
| Network Security |
IP Address Filtering and Host Authentication |
| POWER & PHYSICAL |
| Power Supply |
12 VDC ±25% |
| Power Consumption |
Max. 5 W |
| PoE Power |
Max. 6.5 W |
| Material |
Metal & Plastic |
| Dimensions |
Ø110 × 89.2 mm |
| Weight |
Approx. 340 g |
| Mounting |
Wall / Ceiling / Junction Box |
| ENVIRONMENT |
| Operating Temperature |
-30°C to 60°C |
| Humidity |
95% or Less, Non-Condensing |
| Protection |
IP67 |
| Anti-Corrosion |
No Specific Protection |

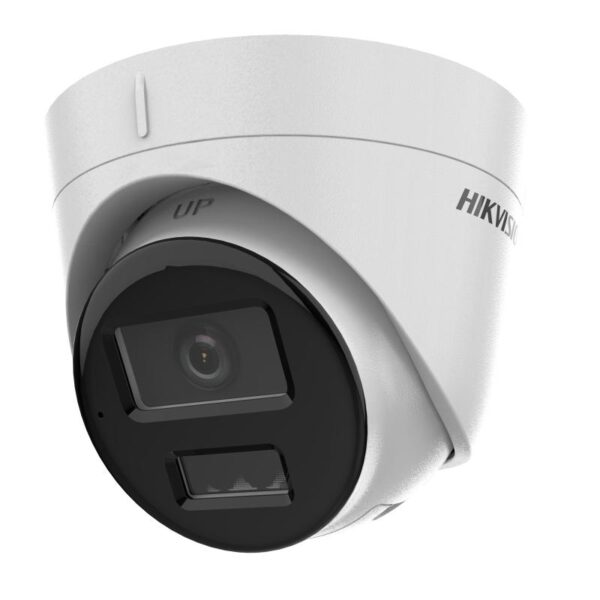

Note: The DS-2CD1323G2-LIUF is a 2 MP Smart Hybrid Light turret camera with Human and Vehicle Detection, built-in microphone, two-way audio, H.265+ compression and optional 2.8 mm / 4 mm fixed lenses.
Important: The -F version supports onboard MicroSD storage and Profile G in addition to Profile S/T. The camera supports both IR and white-light supplementary illumination with a range of up to 30 m.
