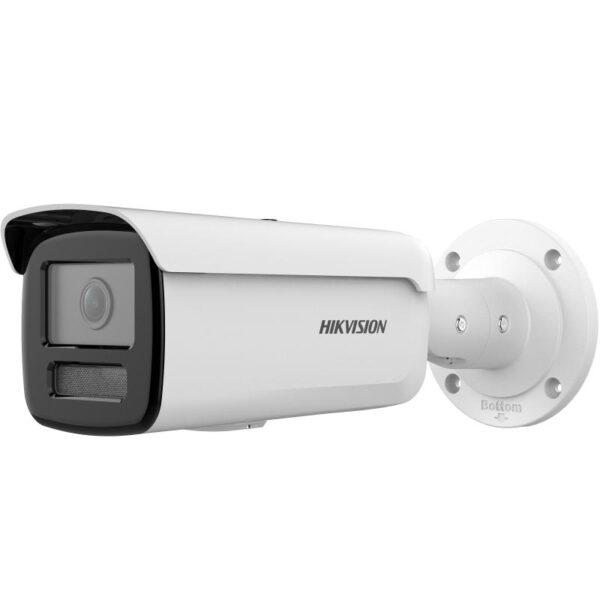

Specifications HIKVISION DS-2CD2T26G2-4I
| Features | Specifications |
|---|---|
| Product Type | 2 MP AcuSense Powered-by-DarkFighter Fixed Bullet Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Maximum Resolution | 1920 × 1080 |
| Frame Rate | Up to 25fps @ 50Hz / 30fps @ 60Hz |
| Low-Light Performance | Color: 0.002 Lux @ F1.4, AGC ON; B/W: 0 Lux with IR |
| WDR | 120dB True WDR |
| Image Enhancement | BLC, HLC, 3D DNR |
| Day & Night | IR Cut Filter |
Lens
| Item | Specifications |
|---|---|
| Lens Type | Fixed Focal Lens |
| Lens Options | 2.8mm / 4mm / 6mm |
| Lens Mount | M12 |
| Aperture | F1.4 |
| FOV – 2.8mm | Horizontal 107°, Vertical 57°, Diagonal 129° |
| FOV – 4mm | Horizontal 86°, Vertical 47°, Diagonal 102° |
| FOV – 6mm | Horizontal 55°, Vertical 29°, Diagonal 65° |
DORI
| Lens | Detect / Observe / Recognize / Identify |
|---|---|
| 2.8mm | 44m / 17m / 9m / 4m |
| 4mm | 53m / 21m / 11m / 5m |
| 6mm | 87m / 34m / 17m / 9m |
IR & Video
| Item | Specifications |
|---|---|
| IR Range | Up to 80m |
| IR Wavelength | 850nm |
| Smart IR | Supported |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Main Stream | 1920 × 1080 / 1280 × 720 |
| Sub Stream | 640 × 480 / 640 × 360 |
| Third Stream | 1920 × 1080 / 1280 × 720 / 640 × 480 / 640 × 360 |
| Video Bitrate | 32Kbps ~ 8Mbps |
Intelligent Functions
| Function | Specifications |
|---|---|
| AcuSense | Deep Learning-Based Human and Vehicle Target Classification |
| Motion Detection | Human and Vehicle Target Classification |
| Line Crossing Detection | Human and Vehicle Classification |
| Intrusion Detection | Human and Vehicle Classification |
| Region Entrance Detection | Human and Vehicle Classification |
| Region Exiting Detection | Human and Vehicle Classification |
| Scene Change Detection | Supported |
| Face Capture | Supported |
| Item | Specifications |
|---|---|
| WDR | 120dB |
| SNR | ≥52dB |
| Image Enhancement | BLC / HLC / 3D DNR |
| Day/Night | Day / Night / Auto / Schedule |
| Privacy Mask | Supported |
| ROI | 1 Fixed Region for Main Stream and Sub Stream |
Storage & Network
| Item | Specifications |
|---|---|
| Memory Card | MicroSD / MicroSDHC / MicroSDXC, Up to 256GB |
| ANR | Supported |
| Network Interface | 1 × RJ45 10/100Mbps Self-Adaptive Ethernet |
| Network Storage | NAS (NFS / SMB / CIFS) |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| ONVIF | Profile S / Profile G / Profile T |
| Remote Access | Hik-Connect / iVMS-4200 / Hik-Central |
| Simultaneous Live View | Up to 6 Channels |
Interface
| Item | Specifications |
|---|---|
| Ethernet | 1 × RJ45 10/100Mbps |
| Audio | Not Supported |
| Alarm | Not Supported |
| Built-in Microphone | Not Supported |
| Reset | Supported |
Power & General
| Item | Specifications |
|---|---|
| Power Supply | 12VDC ±25% or PoE IEEE 802.3af, Class 3 |
| DC Power Consumption | Max. 10.6W |
| PoE Power Consumption | Max. 12W |
| PoE Standard | IEEE 802.3af, Class 3 |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | ≤95% RH, Non-Condensing |
| Protection | IP67 |
| Dimensions | 289 × 93.1 × 91.2mm |
| Weight | Approx. 1020g |
| Housing | Metal |
Note: The DS-2CD2T26G2-4I is a 2MP AcuSense fixed bullet network camera featuring Powered-by-DarkFighter technology, 120dB WDR, human/vehicle classification and up to 80m IR illumination.
Important: The DS-2CD2T26G2-4I is available with 2.8mm, 4mm and 6mm fixed lenses. The 4I version provides up to 80m IR range, compared with up to 60m for the DS-2CD2T26G2-2I.
