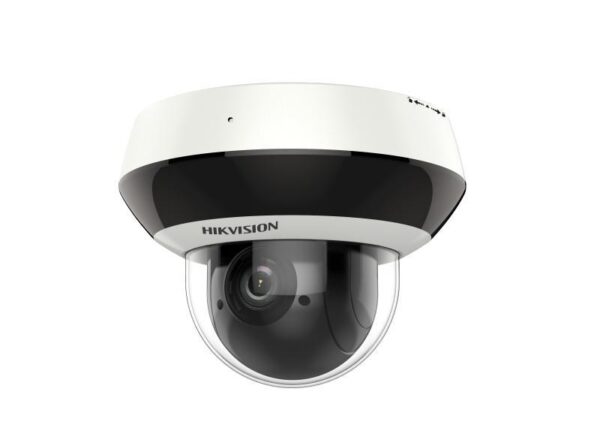

Specifications Hikvision DS-2DE2A404IW-DE3(S6)

Features	Description
Product Type	4MP 4× IR Mini Dome PTZ Network Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	4MP (2560 × 1440)
Lens	2.8–12mm Motorized Varifocal Lens
Optical Zoom	4×
Digital Zoom	16×
Night Vision	DarkFighter Technology and IR up to 20m
WDR	120dB
Pan/Tilt	355° Pan / 90° Tilt
Network	1 × 10/100Mbps RJ45 Ethernet
Storage	MicroSD/SDHC/SDXC up to 256GB
PoE	802.3af
Weather/Vandal Resistance	IP66 / IK10

CAMERA
Image Sensor	1/2.8″ Progressive Scan CMOS
Maximum Resolution	2560 × 1440
Minimum Illumination	Color: 0.005 Lux @ F1.5, AGC ON; B/W: 0.001 Lux @ F1.5, AGC ON; 0 Lux with IR
Shutter Speed	1/1s to 1/30,000s
Day/Night	IR Cut Filter
Wide Dynamic Range	120dB WDR
Digital Noise Reduction	3D DNR
Image Enhancement	BLC, HLC, Defog and EIS
Slow Shutter	Supported

LENS
Focal Length	2.8–12mm
Zoom	4× Optical Zoom / 16× Digital Zoom
Horizontal FOV	96.8° to 31.68°
Vertical FOV	51.16° to 17.798°
Diagonal FOV	115.13° to 36.32°
Focus	Auto, Semi-Auto and Manual
Aperture	F1.5
Zoom Speed	Approximately 2 seconds

IR & PTZ
IR Distance	Up to 20m
IR Wavelength	850nm
Smart IR	Supported
Pan Range	0° to 355°
Tilt Range	0° to 90°
Pan Speed	0.1° to 100°/s; Preset Speed up to 100°/s
Tilt Speed	0.1° to 100°/s; Preset Speed up to 100°/s
Presets	300
3D Positioning	Supported
Preset Freezing	Supported
Proportional Pan	Supported
Park Action	Preset

VIDEO
Video Compression	H.265 / H.264
Video Encoding Profiles	Baseline, Main and High Profile
H.265+	Supported
H.264+	Supported
Region of Interest	Supported
Video Streaming	Multiple Streams

AUDIO
Audio Input	1 × Line In
Audio Output	1 × Line Out
Built-in Microphone	1 × Built-in Microphone
Audio Compression	G.711, G.722.1, G.726, MP2L2, PCM and AAC
Audio Exception Detection	Supported

NETWORK
Ethernet	1 × RJ45 10/100Mbps Self-Adaptive Ethernet Port
Network Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, IPv6 and more
Security	Password Protection, HTTPS Encryption, IP Address Filtering, IEEE 802.1X and User Authentication
ONVIF	Supported
API	Open Network Video Interface and ISAPI

STORAGE
Memory Card Slot	Built-in MicroSD/SDHC/SDXC Card Slot
Maximum Capacity	Up to 256GB
Storage Functions	Local Recording, ANR and Playback
Network Storage	NAS / FTP

SMART EVENT
Face Detection	Supported
Line Crossing Detection	Supported
Intrusion Detection	Supported
Region Entrance Detection	Supported
Region Exiting Detection	Supported
Unattended Baggage Detection	Supported
Object Removal Detection	Supported
Audio Exception Detection	Supported

INTERFACE & POWER
Network Interface	1 × RJ45 10/100Mbps
Alarm Interface	Not Specified for This Model
Power Input	12VDC, Max. 11.2W
PoE	IEEE 802.3af
Power Output	12VDC, Max. 60mA
Lightning Protection	TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

GENERAL
Protection	IP66 / IK10
Operating Temperature	-20°C to 60°C
Operating Humidity	≤90% RH, Non-Condensing
Dimensions	Ø130.7 × 101.7mm
Weight	Approximately 530g
Installation	Ceiling, Wall or Compatible Mounting Bracket

Note: The Hikvision DS-2DE2A404IW-DE3(S6) is a 4MP 4× IR Mini Dome PTZ Network Camera designed for indoor and outdoor surveillance applications. It features a 1/2.8″ Progressive Scan CMOS sensor, DarkFighter low-light technology, 120dB WDR, 4× optical zoom, 16× digital zoom, 20m IR illumination and 355° pan / 90° tilt movement.

Important: This model is a PTZ Mini Dome, not a fixed dome camera. It supports PoE IEEE 802.3af as well as 12VDC power, and its enclosure is rated IP66 for water/dust resistance and IK10 for vandal resistance.
