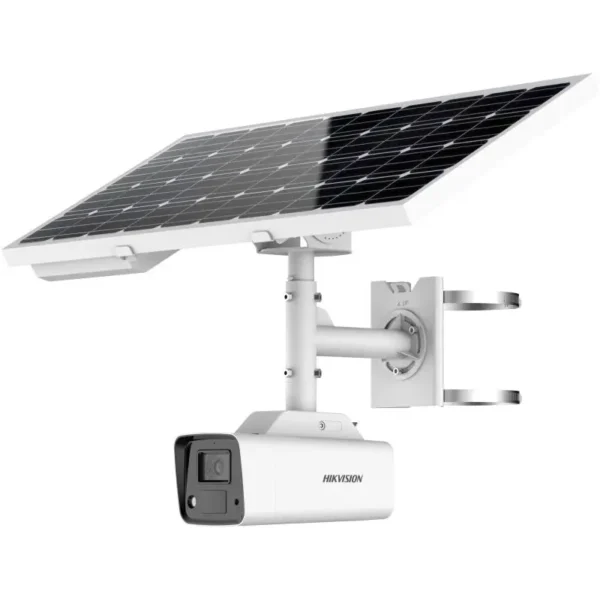

Hikvision DS-2XS2T47G0-LD(W)H/4G/C18S40

4MP ColorVu Solar-powered Security Camera Setup

• High quality imaging with 4 MP resolution
• Standalone with solar panel and built-in battery
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Provide real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Stability against category 12 typhoon
• Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA/EVDO) communication



Camera

• Image Sensor1/1.8″ Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Shutter Time1/3 s to 1/100,000 s
• Angle Adjustment

  Solar Cover: Pan: 0° to 358°, tilt: -40° to 40°

  Camera: Pan: 0° to 360°，tilt: -60° to 0°

Lens

• Lens TypeFixed focal lens, 4 and 6 mm optional
• ApertureF1.0
• Focal Length & FOV

  4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

  6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

• Lens MountM16

DORI

• DORI

  4mm, D: 77 m, O: 30 m, R: 15 m, I: 8 m

  6mm, D: 116 m, O: 46 m, R: 23 m, I: 12 m

Illuminator

• Supplement Light TypeWhite Light
• Supplement Light Range

  Performance mode: up to 30 m

  Proactive mode: up to 10 m

• Smart Supplement LightYes

Video

• Main Stream

  50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 12.5 fps (640 × 480, 640 × 360)

  60 Hz: 15 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265/ H.264

  Sub-stream: H.265/H.264/MJPEG

  H.264+: Performance mode: main stream supports

  H.265+: Performance mode: main stream supports

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Region Of Interest (ROI)1 fixed region for main stream
• Scalable Video Coding (SVC)H.265 and H.264 support

Audio

• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

• DS-2XS2T47G0-LD(W)H/4G/C18S40 SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI, SDK, ISUP
• ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, SNMP, HTTPS, 802.1X
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• Network StorageAuto network replenishment (ANR)
• Client

  iVMS-4200, Hik-Connect, Hik-Central

  Proactive mode: Hik-Connect

• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Mobile Communication
• Frequency

  LTE-TDD: Band 38/40/41;

  LTE-FDD: Band 1/3/5/7/8/20/28;

  WCDMA: Band 1/5/8;

  GSM: band 3/5/8

• StandardLTE-TDD, LTE-FDD, WCDMA, GSM


• SNR≥ 52 dB
• Wide Dynamic Range (WDR)120 dB
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, HLC, 3D DNR
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Transducer
• PIR AngleHorizontal: 100°, vertical: 80°
• PIR RangeUp to 15 m

Interface

• DS-2XS2T47G0-LD(W)H/4G/C18S40 Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

  Built-in 64 GB eMMC storage (50 GB avaible for recording)

• Built-In MicrophoneYes
• Built-In SpeakerYes
• Reset KeyYes

Event

• Basic EventMotion detection, video tampering alarm, exception, PIR
• LinkageUpload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email

General

• DS-2XS2T47G0-LD(W)H/4G/C18S40 Power

  Power Consumption and Current:

  Typical power scenarios: 1.85 W (4 G working)

  Standby scenarios: 40 mW

  Max. power consumption: 7.2 W

  Power Supply:

  12 VDC ± 25%

  *For debugging only

  40 W(deviation: ± 2 W) Solar panels

  Power Interface:

  Power supply interface: Φ5.5 mm coaxial power plug

  Extened solar panel: four-core aviation connector

• MaterialADC12
• Storage Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Startup And Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Dimension614.8 mm × 390.5 mm × 760 mm (24.2″ × 15.4″ × 29.9″)
• Package Dimension837 mm × 267 mm × 445 mm (33″ × 10.5″ × 17.5″)
• Weight

  Pre-install plate: approx. 1080 g (2.4 lb.)

  Bullet camera + bracket + solar panel: approx. 8540 g (18.8 lb.)

• With Package Weightapprox. 11860 g (26.1 lb.)

Battery

• Battery TypeTernary lithium
• Capacity23.2 Ah
• Max. Charging Voltage8.4 V
• Operating Temperature

  Charge: -20 °C to 45 °C (-4 °F to 113 °F). Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F) (deviation: ± 5 °C)

  Discharge: -20 °C to 55 °C (-4 °F to 131 °F). Discharging Condition: -20 °C to 55 °C (-4 °F to 131 °F) (deviation: ± 5 °C)

• Battery Voltage5.5 V to 8.4 V
• Cycle Lifetime

  Performance mode: 2.5 day

  Proactive mode: 4.5 day

  Standby mode: 24 days

• Battery LifeMore than 500 cycles

Approval

• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015)

• RF

  FCC ID (FCC Part 15.247(BT or 2.4G));

  CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G);

  EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));

• Safety

  CB (IEC 62368-1:2014+A11);

  CE-LVD (EN 62368-1:2014/A11:2017);

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013)
