Specifications Hikvision DS-U02

Features	Specifications
Camera
Product Type	2 MP Web Camera
Image Sensor	2 MP CMOS
Signal System	PAL / NTSC
Maximum Resolution	1920 × 1080
Minimum Illumination	0.1 Lux @ F1.2, AGC ON
Shutter Time	PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night	24/7 Color Imaging
White Balance	Auto
Lens
Lens Type	3.6 mm Fixed Focal Lens
Lens Mount	M8
Horizontal FOV	86°
Vertical FOV	55°
Diagonal FOV	95°
Object Distance	0.5 m to ∞
Video
MJPG 1920 × 1080	30 / 25 fps
MJPG 1280 × 960	30 / 25 fps
MJPG 1280 × 720	30 / 25 fps
MJPG 640 × 480	30 / 25 fps
MJPG 640 × 360	30 / 25 fps
YUV 1920 × 1080	5 fps
YUV 1280 × 960	5 fps
YUV 1280 × 720	5 fps
YUV 640 × 480	30 fps
YUV 640 × 360	30 fps
Audio
Microphone	Built-in Microphone
Audio Sampling Rate	16 kHz
Interface
Video Output	USB 2.0
USB Interface	Type-A
Plug & Play	Yes, no driver software required
Indicator	White: Normally Working; Light Off: Standby
Cable Length	1.5 m
Angle Adjustment
Pan	360°
Tilt	-15° to 15°
Rotation	0°
System Compatibility
Windows	Windows 7 / 8 / 10 / 11
Android	Android 8.1 and above
Linux	Linux 4.14 and above
macOS	macOS 10.12 and above
Chrome OS	Supported
General
Material	Plastic
Power Supply	DC 5V ±5% via USB
Power Consumption	Maximum 1.2 W
Operating Temperature	-10°C to 45°C
Operating Humidity	90% or less, non-condensing
Dimensions	80.16 × 48.6 × 42.18 mm
Weight	Approx. 89 g
Package
Package Contents	Camera × 1, Quick Start Guide × 1

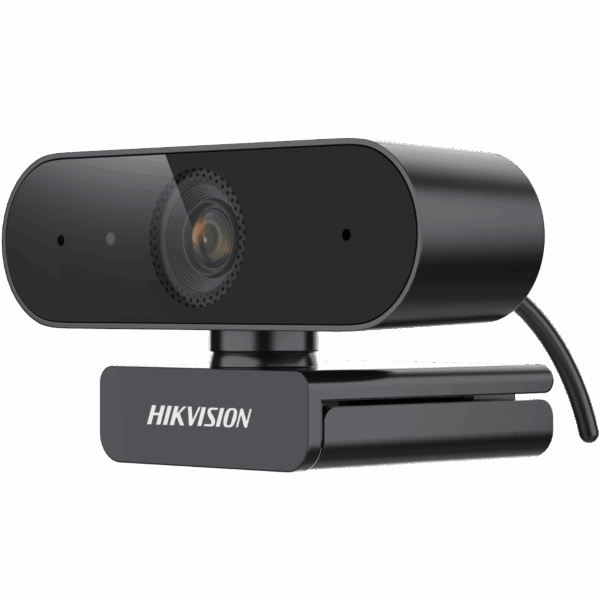

Note: The Hikvision DS-U02 is a 2MP web camera with 1920 × 1080 resolution, a 3.6 mm fixed lens and an 86° horizontal field of view. It features a built-in microphone, USB 2.0 Type-A interface and plug-and-play operation. The camera supports MJPG video up to 30/25 fps at 1080P and is compatible with Windows, Android, Linux, macOS and Chrome OS.
