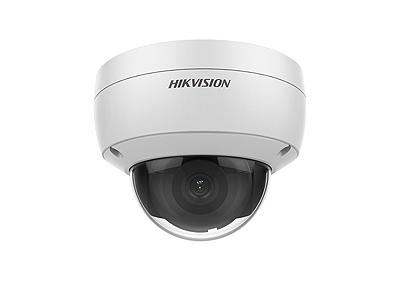

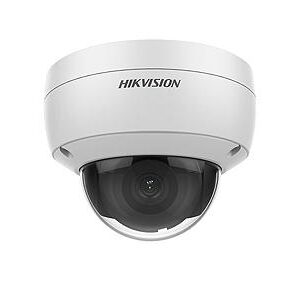

HIKVISION IP Camera รุ่น DS-2CD2123G0-IU

DS-2CD2123G0-IU

HIKVISION IP Camera รุ่น DS-2CD2123G0-IU

HIKVISION IP Camera รุ่น DS-2CD2123G0-IU

2 MP WDR Fixed Dome Network Camera with Build-in Mic

  • Hikvision DS-2CD2123G0-IU Dome IP Camera ความละเอียด 2MP
  • IR 30 เมตร
  • H.265+, Build-In Microphone
  • กันน้ำกันฝุ่น IP66, กันกระแทกระดับ IK10
  • รองรับ SD-Card สูงสุด 128GB
  • รองรับ POE
หมวดหมู่: , , , , ป้ายกำกับ: ,
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
CAMERA
Image Sensor: 1/2.8″ Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
Lens Mount: M12
Adjustment Range: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed



COMPRESSION STANDARD
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Triple Streams: Yes



Max. Image Resolution: 1920 x 1080
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC/3D DNR/ROI/HLC
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping: No
BLC: Yes, zone configurable
ROI: 1 fixed region for main stream and sub-stream
Day/Night Switch: Day/Night/Auto/Schedule



NETWORK
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function: Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask
System Compatibility: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK



INTERFACE
Communication Interface: 1 RJ45 100M self-adaptive Ethernet port
Audio: Built-in mic
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes



AUDIO
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz



SMART FEATURE-SET
Behavior Analysis: Line crossing detection, intrusion detection
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Detection/Recognition: Face Detection



GENERAL
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Power Consumption: 12 VDC, 0.4 A, max. 5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Impact Protection: IK10
Weather Proof: IP66
IR Range: Up to 30m
Dimensions: Camera: Φ121 × 92 mm (Φ4.8″ × 3.6″)
With package: 134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″)
Weight: Camera: Approx. 570 g (1.3 lb.)
With package: Approx. 950 g (2.1 lb.)

ดาวน์โหลด

PDF Download
