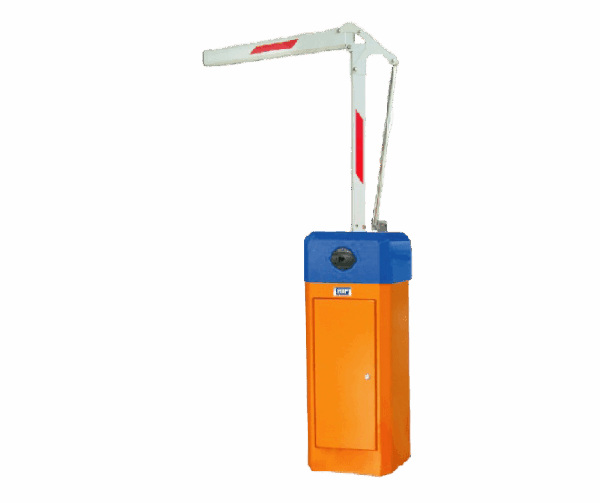

HIP CMW1226

ไม้กั้น HIP รุ่น CMW1226

คุณสมบัติ

หมวดหมู่: Security Systems, Gate Barrier, HIP ป้ายกำกับ: HIP

MODEL	CMW1023	CMW1024	CMW1026	CMW1226
Dimention	480mmX390mmX1000mm	480mmX390mmX1000mm	480mmX390mmX1000mm	480mmX390mmX1000mm
Power Supply	AC110 +-10% AC220 +-10%	AC110 +-10% AC220 +-10%	AC110 +-10% AC220 +-10%	AC110 +-10% AC220 +-10%
Frequency	50HZ. / 60HZ.	50HZ. / 60HZ.	50HZ. / 60HZ.	50HZ. / 60HZ.
Power Consumption	120 Watt	120 Watt	120 Watt	120 Watt
LED Display	NO	NO	NO	NO
Max Straight Arm	4 meters	4.5 meters	6 meters	5 meter(1.5+3.5)
Description/Speed	3 second	3 second	6 second	6 second
Work Temperature	-20’c to 75’c	-20’c to 75’c	-20’c to 75’c	-20’c to 75’c
Ralated Humidity	<=90%	<=90%	<=90%	<=90%
Protection Grade	IP44	IP44	IP44	IP44
Remote control Distance	>30m.	>30m.	>30m.	>30m.
Arm Swing Out(barrier hold)
Arm Swing Out(barrier hold) with pipi ruber
Arm Swing Out（barrier round）
barrier straight sliding octagon
barrier straight with red pipi rubber
barrier straight with black pipi rubber
barrier straight with light
barrier straight octagon	P	P	P
barrier straight pressure wave rubber
barrier Max 90° folding arm				P
Manual Release	yes	yes	yes	yes
Motor Power Rate 电机功率	120 watts	120 watts	120 watts	120 watts
Motor Rated Speed电机速度	1600 r / min	1600 r / min	1400 r / min	1400 r / min
Operation Life 电机寿命	>=600 million	>=600 million	>=600 million	>=600 million
Atmospheric Pressure
Option
Support Infrared sensor	YES	YES	YES	YES
Support Vehicle Loop Detector	Internal and External	Internal and External	Internal and External	Internal and External
