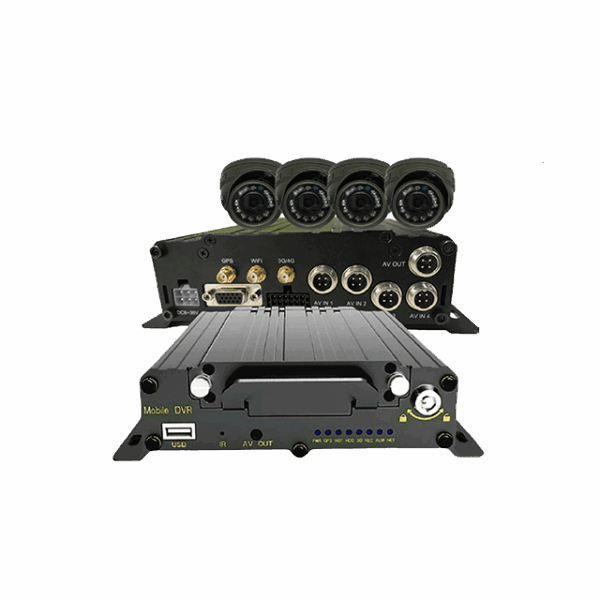

Specifications HIP MDVR-H-2204B
| Features | Description |
|---|---|
| Device Type | 4-Channel Mobile Digital Video Recorder (MDVR) for Vehicles |
| Brand / Series | HIP / Mobile Surveillance & Fleet Management Series |
| Camera Inputs | 4-Channel Video Inputs (Supports AHD / Analog / IP camera formats) |
| Video Compression | H.265 / H.264 High-Performance Video Encoding |
| Recording Resolution | 1080P / 720P / D1 / HD resolution per channel |
| Storage Interface | Supports SD Card (up to 256GB / 512GB) and/or Hard Drive options depending on configuration |
| Target Application | Fleet management, public transport, trucks, delivery vans, and school buses requiring mobile surveillance and vibration-resistant recording |
| SYSTEM & RECORDING PERFORMANCE | |
|---|---|
| Operating System | Embedded Linux Operating System |
| OSD Information | Supports GPS tracking info, vehicle speed, device ID, and time/date overlays |
| Recording Modes | Power-on recording, scheduled recording, motion detection recording, alarm-triggered recording |
| Audio Input / Output | 4-Channel Audio Inputs / 1-Channel Audio Output |
| NETWORK & GPS CONNECTIVITY | |
|---|---|
| Wireless Communication | Optional 3G / 4G LTE module support for real-time remote video monitoring and live tracking |
| GPS Module | Built-in high-precision GPS positioning and route playback tracking |
| Network Ports | 1 × RJ45 Ethernet Port (10/100M) for configuration and data offloading |
| USB Interface | USB ports for mouse control, system backup, and firmware upgrades |
| POWER & PHYSICAL SPECIFICATIONS | |
|---|---|
| Power Input | Wide Voltage DC 8V to 36V (Designed for automotive electrical protection against ignition transients) |
| Power Output | Provides stable 12V DC power output for connected cameras |
| Operating Temperature | -20°C to +70°C |
| Vibration Protection | Anti-vibration mechanical design optimized for vehicle movement and road impacts |
Note: The HIP MDVR-H-2204B is a robust 4-channel mobile digital video recorder engineered specifically for vehicle surveillance and fleet management. It features wide-voltage power input (8V–36V) to handle automotive electrical surges, multi-channel AHD/IP camera inputs, built-in GPS positioning, and optional 4G cellular transmission for live tracking and remote monitoring.
Important: The MDVR-H-2204B supports 4 video channels running on an automotive-grade 8V–36V wide DC power input system to prevent power dropouts during engine ignition. It includes built-in GPS location tracking, optional 4G live streaming capabilities, and a heavy-duty anti-vibration housing built to perform reliably in extreme vehicle environments ranging from -20°C to +70°C.
