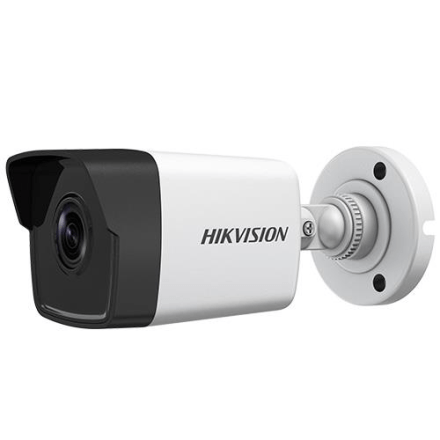

Specifications Hikvision HVS-2CD1001-I4
| Features | Specifications |
|---|---|
Camera |
|
| Camera Type | 1 MP CMOS Network Bullet Camera |
| Image Sensor | 1/4″ Progressive Scan CMOS |
| Maximum Resolution | 1280 × 720 |
| Lens | 4 mm Fixed Lens, F2.2 |
| Lens Mount | M12 |
| Horizontal Field of View | 70° |
| Minimum Illumination | 0.01 Lux @ F1.2, AGC ON; 0 Lux with IR |
| Day/Night | IR Cut Filter with Auto Switching |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Image Adjustment | Brightness, Saturation, Contrast and Sharpness |
| WDR | Digital WDR |
| Noise Reduction | 3D DNR |
Video |
|
| Video Compression | H.264 / MJPEG |
| Video Stream | Dual Stream |
| Main Stream | 1280 × 720 @ 25 fps (50 Hz) / 30 fps (60 Hz) |
| Sub Stream | Up to 640 × 480 @ 25/30 fps |
| Video Bit Rate | 32 Kbps to 2 Mbps |
| Image Functions | BLC, ROI, Mirror, Anti-Flicker and Privacy Mask |
Detection & Alarm |
|
| Motion Detection | Supported |
| Tamper Alarm | Supported |
| Network Disconnection Alarm | Supported |
| IP Address Conflict Alarm | Supported |
Network |
|
| Network Interface | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet Port |
| Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6 and Bonjour |
| Network Standard | ONVIF Profile S / Profile G, PSIA, CGI and ISAPI |
| Remote Monitoring | Hik-Connect / iVMS |
IR & Protection |
|
| IR Range | Up to 30 m |
| Ingress Protection | IP67 |
| Adjustment | 3-Axis Bracket Adjustment |
Power & Environment |
|
| Power Supply | 12 VDC ±25% / PoE (802.3af) |
| Power Consumption | Maximum 4 W / 5 W via PoE |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | 95% or Less, Non-Condensing |
Physical |
|
| Dimensions | 69.1 × 66 × 172.7 mm |
| Weight | Approx. 500 g |
Note: The Hikvision HVS-2CD1001-I4 is a 1 MP IP bullet camera with a 4 mm fixed lens, 1280 × 720 resolution and up to 30 m infrared range. It supports H.264 video compression, dual-stream transmission, Digital WDR, 3D DNR, motion detection and PoE (802.3af). The camera features an IP67-rated housing for outdoor installation and provides a 10/100 Mbps Ethernet interface with ONVIF support for integration with compatible NVR and surveillance systems.
