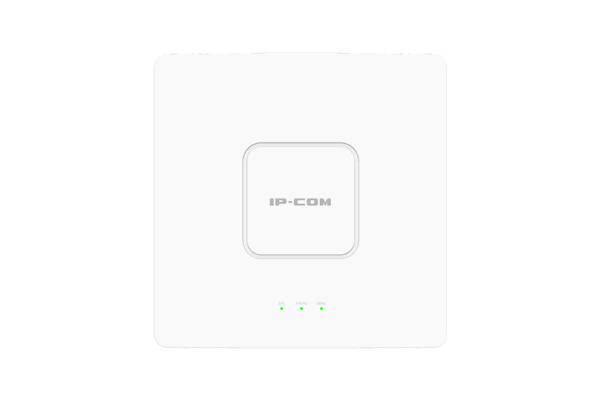

Specifications IP-COM W66AP

Features	Specifications
Product Type	AC1750 Wave2 Gigabit Ceiling Access Point
Wireless Standard	IEEE 802.11a/b/g/n/ac Wave2
Wireless Speed	Up to 1750Mbps
2.4GHz Speed	Up to 450Mbps
5GHz Speed	Up to 1299Mbps
MIMO Technology	3×3 MU-MIMO
Frequency Band	2.400–2.4835GHz, 5.150–5.250GHz
Antennas	6 × Internal 4dBi Antennas
Channel Width	2.4GHz: 20/40MHz; 5GHz: 20/40/80MHz
Coverage Optimization	Built-in RF Anti-Interference Technology

Network & Management

Features	Specifications
Ethernet Port	1 × 10/100/1000Mbps Gigabit RJ45
Operating Modes	AP, Client+AP
SSID	2.4GHz: Up to 8; 5GHz: Up to 4
Connected Clients	More than 200 Clients per Band
VLAN	VLAN Tagging for SSID
AP Isolation	Supported
MAC Access Control	Supported
RSSI Threshold	Supported
Frequency Analysis	Supported
Centralized Management	IP-COM AC Controller and Enterprise Router with AC Function

Wireless Security

Features	Specifications
Security	WEP, WPA, WPA2
WPA-PSK	AES/TKIP
WPA2-PSK	AES/TKIP
SSID Hiding	Supported
Transmit Power Control	Supported
Client Control	Supported

Power & General

Features	Specifications
PoE	IEEE 802.3at
DC Power	12V / 1.5A
Maximum Power Consumption	13.5W
Installation	Ceiling Mount
LED Indicators	SYS, 2.4GHz, 5GHz
Reset Button	1
Operating Temperature	-10°C to +45°C
Operating Humidity	10% to 90% RH, Non-condensing
Dimensions	178 × 178 × 38mm

Note: The W66AP is an indoor ceiling access point designed for high-density wireless environments such as offices, classrooms, restaurants and conference rooms.

Important: The IP-COM W66AP is an EOL model. Actual wireless performance depends on the installation environment, interference and connected client devices.
