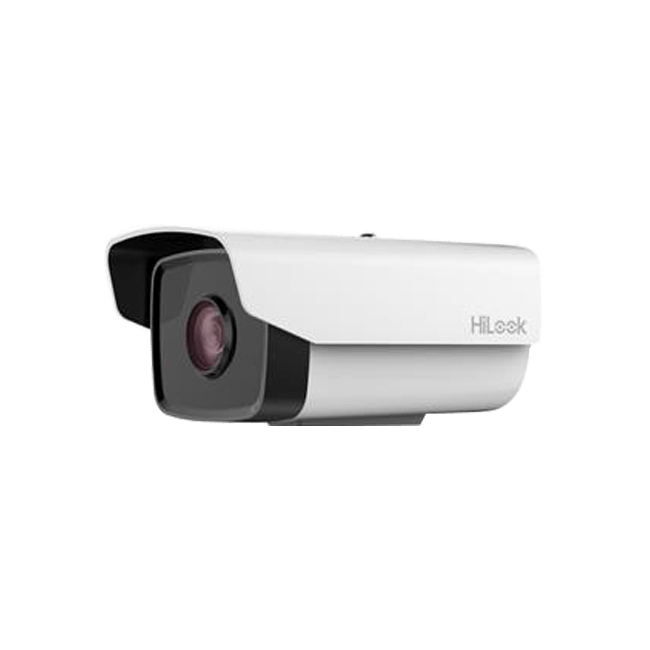

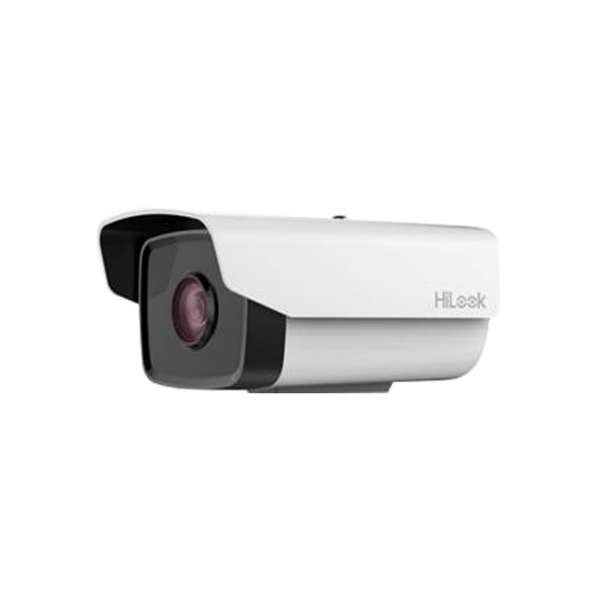

IPC-B220
Hilook รุ่น IPC-B220
2.0 MP CMOS Network Camera
รายละเอียด
- ชิปเซ้ต 1/2.8″ progressive scan CMOS
- ความละเอียด 2.0 MP
- เลนส์ 4 mm/6 mm fixed focal lens
- ระยะมองกลางคืน 30 เมตร
- 3D DNR (Digital Noise Reduction)
- รองรับ PoE
- กันน้ำ IP 67
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination: | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Slow shutter: | Support | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Lens: | 4 mm, horizontal field of view: 83° (6 mm: 55°optional) | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG | |
| H.264 code profile: | Baseline profile/Main profile | |
| Video bit rate: | 32Kbps~8Mbps | |
| Dual Stream: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 25fps @( 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
|
| Sub Stream: | 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240) |
|
| Image Settings: | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software | |
| BLC: | Support | |
| Day/Night Switch: | Support auto, scheduled | |
| Network | ||
|---|---|---|
| Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | 12 VDC, 0.38 A, Max. 4.5 W PoE (802.3af, 37 V to 57 V), 0.1 A to 0.16 A, Max. 6 W |
|
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | 147.5 mm × 78.2 mm × 92.9 mm (5.8″ × 3.1″ × 3.7″) | |
| Weight: | Approx. 350g (0.8 lb) | |
