IPC-HDBW1831R

IPC-HDBW1831R

IPC-HDBW1831R

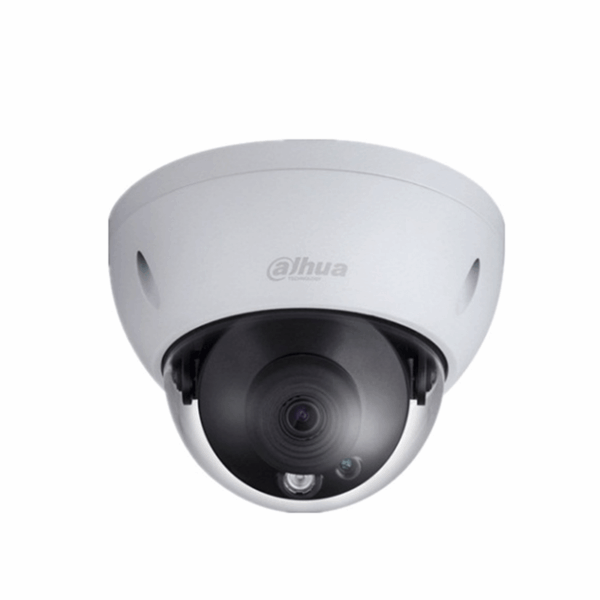

Dahua รุ่น IPC-HDBW1831R

8MP WDR IR Dome Network Camera

  • กล้องวงจรปิด Dahua IPC 8ล้านพิกเซล (4K) PoE
  • IVS (Intelligent Video Analysis)
  • 3840×2160 @30FPS / WDR / 3DNR / BLC / HLC / ROI
  • รองรับ H.265+ / H.265 / H.264+ / H.264
  • Lens 3.6mm / กลางคืนสูงสุด 30M / IK10 / IP67 / PoE

หมวดหมู่: , , , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Camera
Image Sensor 1/1.8” 8Megapixel progressive CMOS
Effective Pixels 3840(H) x2160(V)
RAM/ROM 512MB/128MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.003Lux/F1.6( Color,1/3s,30IRE)

0.02Lux/F1.6 Color,1/30s,30IRE)

0Lux/F1.6(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (4mm, 6mm optional)
Max. Aperture F1.6/F1.6/F1.6
Angle of View H:111°/87°/55°, V:59°/47°/30°
Focus Control Fixed
Close Focus Distance 1.5m (4.9ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 84m(275.6ft) 34m(111.5ft) 17m(55.8t) 8m(26ft)
4mm 104m(341ft) 42m(138ft) 21m(69ft) 10m(33ft)
6mm 164m(538ft) 66m(217t) 33m(108ft) 16m(52ft)
PTZ
Pan/Tilt Range Pan:0° ~355° ;Tilt:0° ~75° ;Rotation:0° ~355°
Intelligence
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS Tripwire, Intrusion
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/

3M(2048×1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 4K (1~25/30fps)
Sub Stream: D1(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 32Kbps~8192Kbps

H.265: 16Kbps~8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization(EIS) N/A
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;SSH;NFS
Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage NAS

Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE (802.3af)(Class 0)
Power Consumption <8.9W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Construction
Casing Metal
Dimensions φ122mm×88.9mm(4.80”x3.50”)
Net Weight 0.45Kg (1.0lb)
Gross Weight 0.60Kg(1.33lb)
