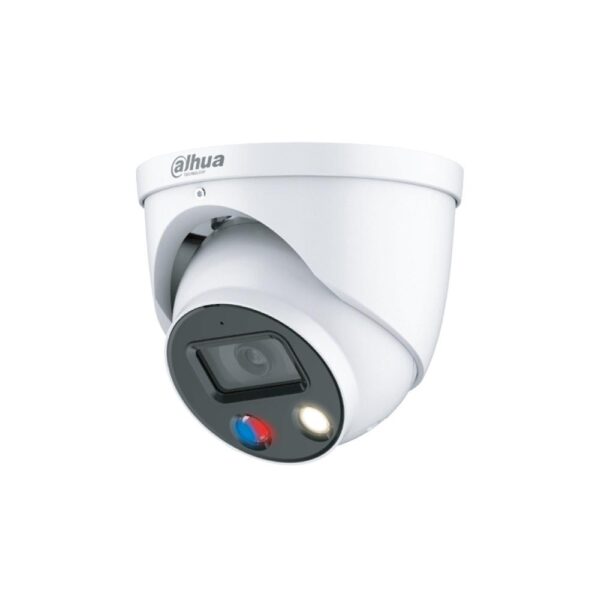

Specifications Dahua IPC-HDW3249HP-AS-PV
| Features |
Description |
| Device Type |
2MP Full-Color Active Deterrence Fixed-Focal Eyeball WizSense Network Camera (TiOC Series) |
| Brand / Series |
Dahua / WizSense Series 3 / TiOC (Three-in-One Camera) |
| Image Sensor |
1/2.8″ 2Megapixel Progressive Scan CMOS |
| Maximum Resolution |
2MP (1920 × 1080) @ 25/30 fps |
| Lens Specifications |
2.8 mm or 3.6 mm fixed focal lens options |
| Field of View |
(2.8mm) Horizontal: 107° | Vertical: 55° | Diagonal: 127°
(3.6mm) Horizontal: 84° | Vertical: 44° | Diagonal: 99° |
| Minimum Illumination |
0.0015 Lux @ F1.0 (Color, AGC ON) |
| Night Vision Range |
Warm Light Illumination up to 30 meters (98.4 feet) for 24/7 full-color imaging |
| Protection Rating |
IP67 Weatherproof Housing |
| ACTIVE DETERRENCE, AUDIO & AI INTELLIGENCE |
| Active Deterrence |
Red and blue warning flashlight, siren/speaker alert with 11 built-in sounds and custom voice importing |
| AI Analytics (WizSense) |
Perimeter Protection (Tripwire, Intrusion with accurate human and vehicle classification), SMD Plus |
| Video Compression |
Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264B / H.264H / MJPEG |
| Audio & Alarm Interface |
Built-in Microphone and Speaker (Two-way talk); 1-ch Audio In / 1-ch Audio Out; 1-ch Alarm In / 1-ch Alarm Out |
| STORAGE & NETWORK INTERFACES |
| Edge Storage |
MicroSD Card Slot supporting up to 256 GB local storage |
| Network Interface |
1 × RJ-45 Port (10/100 Base-T Ethernet) |
| Interoperability |
ONVIF (Profile S/G/T), CGI, P2P |
| Management Software |
Smart PSS, DSS, DMSS, Web UI |
| POWER & PHYSICAL SPECIFICATIONS |
| Power Supply |
12V DC / PoE (IEEE 802.3af) |
| Power Consumption |
Basic: 1.9W (12V DC) / 2.55W (PoE); Max (LEDs, siren, WDR active): 6.1W (12V DC) / 7.35W (PoE) |
| Dimensions & Weight |
Φ122.0 mm × 110.9 mm (Φ4.8″ × 4.4″) | Net Weight: Approx. 0.75 kg (1.7 lb) |
| Operating Environment |
-40°C to +60°C (-40°F to +140°F); Humidity: ≤ 95% RH |
Note: The Dahua IPC-HDW3249HP-AS-PV is a high-performance 2MP active deterrence network camera from Dahua’s TiOC (Three-in-One Camera) series. Combining 24/7 full-color imaging via an F1.0 aperture lens, WizSense AI human/vehicle target filtering, and active red-and-blue flashing light and siren deterrence, it delivers proactive security alerts to prevent incidents before they occur.
Important: This camera features active deterrence tools (red/blue strobe lights and a built-in siren speaker), sharp 2MP resolution at 30 fps, and Smart Dual/Warm light illumination up to 30 meters. It includes audio and alarm I/O terminals alongside a built-in mic and speaker, supports up to a 256 GB MicroSD card, operates on 12V DC or PoE, and is housed inside a rugged IP67-rated metal chassis built for extreme temperatures from -40°C to +60°C.
