| Features |
Description |
| Device Type |
4MP ColorHunter Fixed Bullet Network Camera |
| Brand / Series |
Uniview (UNV) / Easy Series (ColorHunter & Active Deterrence) |
| Image Sensor |
1/3″ Progressive Scan 4.0 Megapixel CMOS |
| Maximum Resolution |
4MP (2688 × 1520) @ 30/25 fps |
| Lens Specifications |
2.8 mm Fixed Focal Lens (F1.6) |
| Field of View |
Horizontal: 101.1° | Vertical: 55.1° | Diagonal: 130.8° |
| Minimum Illumination |
Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with warm light active |
| Illumination Range |
Warm White Light illumination up to 30 meters (98 feet) for 24/7 full-color imaging |
| Protection Rating |
IP67 Weatherproof Metal Housing |
| VIDEO & AUDIO PERFORMANCE |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| Wide Dynamic Range |
120 dB True WDR technology for high-contrast lighting environments |
| Corridor Mode |
Supports 9:16 vertical corridor viewing format |
| Audio Capabilities |
Built-in Microphone for real-time audio monitoring |
| SMART FEATURES & STORAGE |
| Smart Detection |
Cross line detection, intrusion detection based on human body classification, motion detection |
| Edge Storage |
MicroSD card slot supporting up to 256GB / 512GB (depending on firmware/batch) |
| Network Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Integration Support |
ONVIF (Profile S, Profile G, Profile T), API |
| POWER & PHYSICAL SPECIFICATIONS |
| Power Supply |
DC 12V ± 25% or Power over Ethernet (PoE IEEE 802.3af) |
| Power Consumption |
Max 5.0 W (PoE: Max 6.0 W) |
| Network Interface |
1 × RJ45 10M/100M Base-TX Ethernet port |
| Dimensions & Weight |
161 × 63 × 62 mm (6.3″ × 2.5″ × 2.4″) | Approx. 0.30 kg (0.66 lbs) |
| Operating Environment |
-30°C to 60°C (-22°F to 140°F); Humidity: ≤95% RH (non-condensing) |

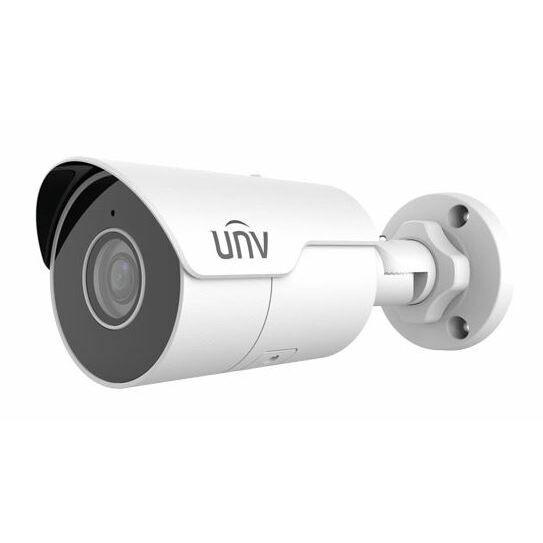

Note: The Uniview IPC2124LE-ADF28KM-G is a high-performance 4MP fixed bullet network camera equipped with Uniview’s signature ColorHunter technology. It captures crisp 4MP Quad HD images around the clock with vivid full-color detail even in near-complete darkness, backed by smart human-detection analytics and an integrated microphone.
Important: The camera features a wide-angle 2.8mm fixed lens delivering a 101.1° horizontal field of view powered by a 120dB true WDR sensor. It provides full-color night illumination up to 30 meters via warm white light, supports local storage via MicroSD up to 256GB/512GB, and operates via 12V DC or PoE (802.3af) inside a rugged IP67 metal enclosure rated for temperatures from -30°C to 60°C.
