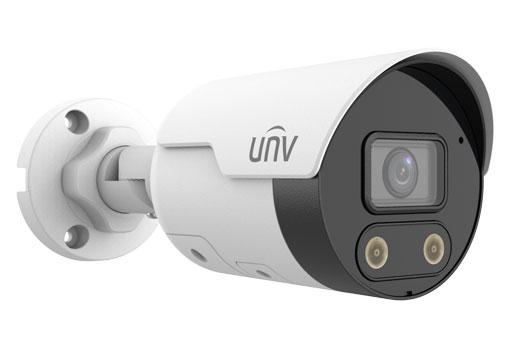

Specifications UNIVIEW IPC2128SB-ADF40KMC-I0
| Features | Description |
|---|---|
| Product Type | 8MP HD Intelligent Light and Audible Warning Fixed Bullet Network Camera |
| Image Sensor | 1/2.7″, 8.0 Megapixel Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 |
| Lens | 4.0mm Fixed Lens, F1.6 |
| Horizontal FOV | 86.5° |
| WDR | 120dB True WDR |
| Supplemental Light | Dual Light: IR and Warm Light, up to 30m |
| Smart Functions | Smart Intrusion Prevention, People Counting and Crowd Density Monitoring |
| Active Deterrence | Built-in Speaker and Audible Warning |
| Audio | Built-in Microphone and Speaker, Two-way Audio |
| Storage | MicroSD up to 256GB |
| Protection | IP67 |
| Camera | |
|---|---|
| Sensor | 1/2.7″, 8.0 Megapixel Progressive Scan CMOS |
| Minimum Illumination | Color: 0.0025 Lux @ F1.6, AGC ON; 0 Lux with IR ON |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter | Auto/Manual, 1s ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| Lens & DORI | |
|---|---|
| Lens | 4.0mm @ F1.6 Fixed Lens |
| Horizontal FOV | 86.5° |
| Vertical FOV | 44.1° |
| Diagonal FOV | 112.5° |
| DORI – Detect | 120.0m |
| DORI – Observe | 48.0m |
| DORI – Recognize | 24.0m |
| DORI – Identify | 12.0m |
| Dual-light Illuminator | |
|---|---|
| Supplemental Light | Dual Light |
| IR Distance | Up to 30m |
| Warm Light Distance | Up to 30m |
| Wavelength | 850nm |
| Light Control | Auto/Manual |
| Smart IR | Supported |
| Video | |
|---|---|
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 8MP (3840 × 2160) Max 20fps; 5MP (3072 × 1728) Max 30fps; 4MP (2560 × 1440) Max 30fps; 1080P Max 30fps |
| Sub Stream | 1080P, 720P, D1, 640 × 360, 2CIF, CIF up to 30fps |
| Third Stream | D1, 640 × 360, 2CIF, CIF up to 30fps |
| Video Bit Rate | 128Kbps ~ 16Mbps |
| H.264 Profile | Baseline, Main, High Profile |
| U-Code | Supported |
| Video Stream | Triple Streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 Areas |
| ROI | Up to 8 Areas |
| Corridor Mode | 9:16 Supported |
| Image & Intelligent Functions | |
|---|---|
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | Supported |
| BLC / HLC | Supported |
| Defog | Digital Defog |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter Area and Leave Area Detection |
| Target Classification | Human, Motor Vehicle and Non-Motor Vehicle |
| False Alarm Filtering | Supported |
| Face Capture | Supported |
| People Counting | People Flow Counting and Crowd Density Monitoring |
| Basic Detection | Motion Detection, Ultra Motion Detection, Tampering Alarm and Audio Detection |
| Audio & Active Deterrence | |
|---|---|
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Audio Compression | G.711U, G.711A |
| Audio Bit Rate | 64Kbps |
| Two-way Audio | Supported |
| Audio Suppression | Supported |
| Sampling Rate | 8kHz |
| Active Deterrence | Audible Warning through Built-in Speaker |
| Storage | |
|---|---|
| Edge Storage | MicroSD up to 256GB |
| Network Storage | ANR, NAS (NFS) |
| Network & Interface | |
|---|---|
| Network Interface | 1 × RJ45 10/100M Base-TX Ethernet |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1X, SNMP, QoS, RTMP, SSL/TLS, SSH |
| ONVIF | Profile S, Profile G, Profile T |
| API / SDK | Supported |
| Maximum Users | Up to 32 Users |
| Security | Password Protection, HTTPS Encryption, RTSP Authentication, TLS 1.2 and ONVIF Authentication |
| Client | EZStation, EZView, EZLive |
| Wi-Fi | Not Available |
| Alarm I/O | Not Available |
| RS485 | Not Available |
| Video Output | Not Available |
| Power & Physical | |
|---|---|
| Power Supply | DC 12V ±25%, PoE IEEE 802.3af |
| Power Consumption | Max. 10.5W |
| Power Interface | Ø5.5mm Coaxial Power Plug |
| Dimensions | 191 × 75 × 74mm |
| Weight | 0.41kg |
| Material | Metal |
| Reset Button | Supported |
| Environment & Protection | |
|---|---|
| Operating Temperature | -30°C ~ 60°C |
| Storage Temperature | -30°C ~ 60°C |
| Humidity | ≤95% RH, Non-condensing |
| Surge Protection | 2KV |
| Protection Rating | IP67 |
| Certifications | |
|---|---|
| EMC | CE-EMC, FCC |
| Safety | CE LVD, CB, UL |
| Environment | CE-RoHS, WEEE, REACH |
Note: The IPC2128SB-ADF40KMC-I0 is the 4.0mm lens version, providing a narrower 86.5° horizontal field of view and longer DORI distances than the 2.8mm version.
Important: The 4.0mm version provides up to 120m detection, 48m observation, 24m recognition and 12m identification distance. It also supports built-in microphone, speaker, two-way audio and audible warning.
