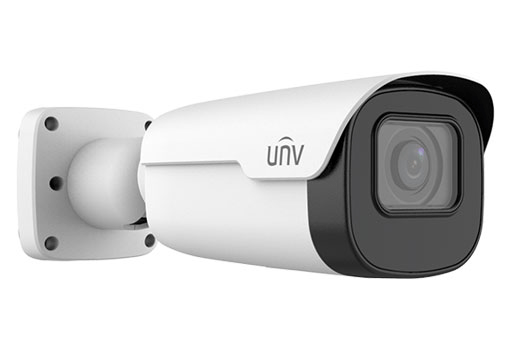

Specifications Uniview IPC2A22SA-DZK

Features	Description
Device Type	2MP LightHunter Bullet Network Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Lens	2.7 ~ 13.5mm AF Motorized Zoom Lens
Field of View	114° ~ 31.8° Horizontal
WDR	120dB True WDR
IR Range	Up to 50m
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Smart Features	Motion Detection, Smart IR, HLC, BLC and Digital Defog
Audio	Audio Input / Output, Two-Way Audio
Storage	MicroSD up to 256GB
Protection	IP67 / IK10
Power	DC 12V ±25% / PoE (IEEE 802.3af)

CAMERA
Image Sensor	1/2.7″, 2.0 Megapixel Progressive Scan CMOS
Maximum Resolution	1920 × 1080
Minimum Illumination	Color: 0.001 Lux (F1.35, AGC ON), 0 Lux with IR On
Day/Night	IR-Cut Filter with Auto Switch (ICR)
Shutter	Auto / Manual, 1 ~ 1/100000s
WDR	120dB True WDR
S/N	>52dB
Adjustment Angle	Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°

LENS
Lens Type	Motorized Varifocal
Focal Length	2.7 ~ 13.5mm
Focus	AF Automatic Focusing
Zoom	Motorized Zoom
Iris	F1.35
Horizontal Field of View	114° ~ 31.8°
Vertical Field of View	58.9° ~ 17.6°

DORI
2.7mm – Detect	40.5m
2.7mm – Observe	16.2m
2.7mm – Recognize	8.1m
2.7mm – Identify	4.1m
13.5mm – Detect	202.5m
13.5mm – Observe	81m
13.5mm – Recognize	40.5m
13.5mm – Identify	20.3m

VIDEO
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Main Stream	2MP (1920 × 1080), Max 30fps
Sub Stream	D1 (720 × 576), Max 30fps
Third Stream	CIF (352 × 288), Max 30fps
Video Bit Rate	128Kbps ~ 16Mbps
Video Stream	Triple Streams
U-Code	Supported
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 Areas
ROI	Up to 8 Areas

White Balance	Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction	2D / 3D DNR
Smart IR	Supported
HLC	Supported
BLC	Supported
Defog	Digital Defog
Image Flip	Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise
Dewarping	Supported

SMART FEATURES
Motion Detection	Up to 4 Areas
Smart IR	Supported
HLC	Supported
BLC	Supported
Digital Defog	Supported

ILLUMINATOR
Light Type	IR
IR Range	Up to 50m
IR Wavelength	850nm
IR Control	Auto / Manual
Smart IR	Supported

AUDIO
Audio Input	Supported
Audio Output	Supported
Audio Compression	G.711
Two-Way Audio	Supported
Audio Suppression	Supported
Sampling Rate	8KHz

STORAGE
Edge Storage	MicroSD, Up to 256GB
Network Storage	ANR / NAS (NFS)

NETWORK
Network Interface	1 × RJ45 10/100Mbps Base-TX Ethernet
ONVIF	Profile S / Profile G / Profile T
Compatible Integration	ONVIF / API
Network Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Client	EZStation / EZView / EZLive / Web Browser

INTERFACE
Network	1 × RJ45 10/100Mbps Base-TX Ethernet
Audio I/O	1 Input / 1 Output
Alarm I/O	1 Input / 1 Output
Wi-Fi	Not Supported
Video Output	Not Supported
Reset Button	Supported

POWER & PROTECTION
Power Supply	DC 12V ±25% / PoE (IEEE 802.3af)
Maximum Power Consumption	8.5W
Surge Protection	6KV
Protection	IP67
Vandal Resistance	IK10

PHYSICAL & ENVIRONMENT
Dimensions	274.4 × 98.1 × 89.7mm
Weight	1.14kg
Material	Metal
Operating Temperature	-30°C to 60°C
Storage Temperature	-30°C to 60°C
Operating Humidity	≤95% RH, Non-Condensing
Storage Humidity	≤95% RH, Non-Condensing

Note: The Uniview IPC2A22SA-DZK is a 2MP LightHunter Bullet Network Camera featuring a 1/2.7″ progressive scan CMOS sensor, 2.7 ~ 13.5mm AF motorized zoom lens, 1920 × 1080 resolution at up to 30fps, 120dB True WDR and Smart IR up to 50m. It supports Ultra 265/H.265/H.264/MJPEG compression, triple video streams, two-way audio, MicroSD storage up to 256GB, PoE (IEEE 802.3af), IP67 and IK10 protection.

Important: The IPC2A22SA-DZK is a Varifocal Bullet Camera, not a PTZ camera. It uses a 2.7 ~ 13.5mm motorized varifocal lens with automatic focusing, providing a horizontal viewing angle from 114° to 31.8°. The camera also supports 3-axis physical adjustment, IP67 weather protection and IK10 vandal resistance.
